DCSE235

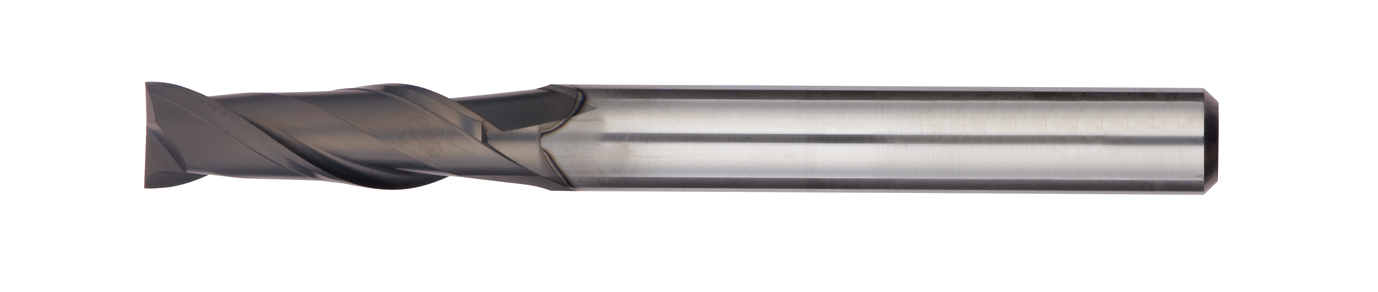

DIAMOND COATING 2-Flute End Mill

●Original DIAMOND COATING realized a long tool life for the machining of graphite,silicon-aluminum alloy and brittle materials.
●Square design of L/D=3 is suited for the machining of narrow and deep area.

  • Coating
    DIAMOND COATING

  • Material
    Regular Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 92.5HRA

  • Number of Flutes
    2 Flutes

  • Helix Angle
    35°

  • φd h5

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
~
52HRC
~
60HRC
~
65HRC
~
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel
~
52HRC
Resin
~
60HRC
Graphite
~
65HRC
Hard Brittle
Material
~
70HRC
Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code
No.

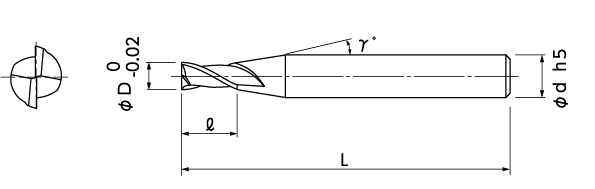

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
05-00035-00050 0.5 1.5 12° 4 45
05-00035-00100 1 3 12° 4 45
05-00035-00150 1.5 4.5 12° 4 45
05-00035-00200 2 6 12° 4 45
05-00035-00300 3 9 12° 6 45
05-00035-00400 4 12 12° 6 50
05-00035-00500 5 15 12° 6 55
05-00035-00600 6 18 - 6 60
