PCDSE

PCD Square End Mill

●Fine and stable milling surface realized on cemented carbide material．
●Possible to get the nano-level surface roughness required on ultra-high precision machining．
●NS original flute design of cutting edge enabled a strong resistance against wear and chipping．

  • Material
    Polycrystalline Diamond

  • Cutting Possibility of Work Material Hardness
    Up to 92.5HRA

  • Number of Flutes
    2 Flutes · 6 Flutes

  • Helix Angle
    0°

  • φd h3

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Line up

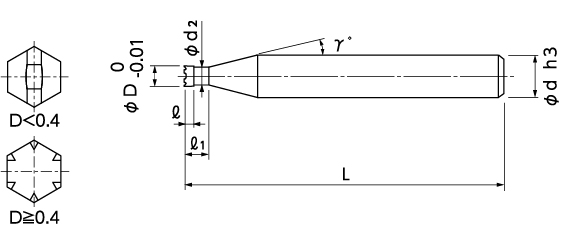

Unit [size: mm]

Code
No.		 (D)Dia. (l1)Under Neck Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Number of Flute Semi-standard
04-00300-00100 0.1 0.1 0.02 0.09 15° 4 48 2
04-00300-00200 0.2 0.2 0.04 0.18 15° 4 48 2
04-00300-00300 0.3 0.3 0.06 0.27 15° 4 48 2
04-00300-00400 0.4 0.4 0.08 0.36 15° 4 48 6
04-00300-00500 0.5 0.5 0.1 0.45 15° 4 48 6
04-00300-00600 0.6 0.6 0.12 0.54 15° 4 48 6
04-00300-00800 0.8 0.8 0.16 0.72 15° 4 48 6
04-00300-01000 1 1 0.2 0.9 15° 4 48 6
