DCMS

End Mill for Hard Brittle Materials

●Machinable on hard brittle materials such as cemented carbide and ceramic．
●High adhered DIAMOND COATING makes tool life long．

  • Coating
    DIAMOND COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 92.5HRA

  • Number of Flutes
    6 Flutes · 8 Flutes · 10 Flutes

  • Helix Angle
    30°

  • φd h3

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Line up

Unit [size: mm]

Code

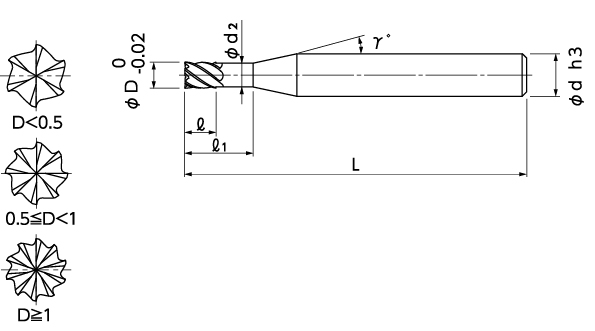

No.		 (D)Dia. (l1)Under Neck Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Number of Flute Semi-standard
05-00100-03006 0.3 0.6 0.15 0.28 12° 4 45 6
05-00100-03012 0.3 1.2 0.15 0.28 12° 4 45 6
05-00100-04008 0.4 0.8 0.2 0.38 12° 4 45 6
05-00100-04016 0.4 1.6 0.2 0.38 12° 4 45 6
05-00100-05010 0.5 1 0.25 0.46 12° 4 45 8
05-00100-05020 0.5 2 0.25 0.46 12° 4 45 8
05-00100-08016 0.8 1.6 0.4 0.76 12° 4 45 8
05-00100-08032 0.8 3.2 0.4 0.76 12° 4 45 8
05-00100-10020 1 2 0.5 0.95 12° 4 45 10
05-00100-10040 1 4 0.5 0.95 12° 4 45 10
05-00100-15030 1.5 3 0.75 1.45 12° 4 45 10
05-00100-15060 1.5 6 0.75 1.45 12° 4 45 10
05-00100-20040 2 4 1 1.94 12° 4 45 10
05-00100-20080 2 8 1 1.94 12° 4 45 10
