Ball End Mill for Hard Brittle Materials

●Spiral ball shape with balanced strength and sharpness of cutting edges Adopted newly-developed DIAMOND COATING with enhanced sticking force.

  • Coating
    DIAMOND COATING

  • Material
    Regular Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 92.5HRA

  • Number of Flutes
    2 Flutes

  • Helix Angle
    20°

  • φd h3

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel

55HRC

65HRC

70HRC
Carbon Steel Alloy Steel
Prehardened
Steel
Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel

55HRC

65HRC

70HRC

Leaflet

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

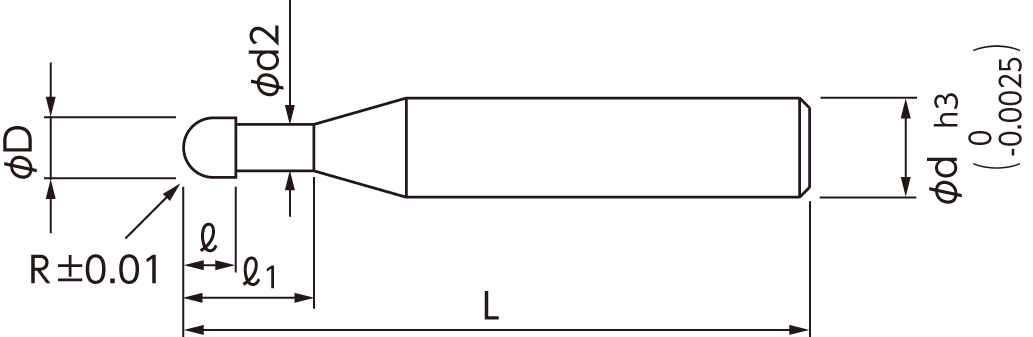

(R)Radius (l1)Under Neck Length (l)Length of Cut Type (d2)Neck Dia. (d)Shank Dia. (L)Overall Length Retail
Price
05-00500-00100 R0.1 0.15 A 4 45 38,000
05-00500-00101 R0.1 0.5 0.12 B 0.18 4 45 38,400
05-00500-00200 R0.2 0.3 A 4 45 35,000
05-00500-00201 R0.2 1 0.25 B 0.37 4 45 35,400
05-00500-00300 R0.3 0.45 A 4 45 31,100
05-00500-00301 R0.3 1.5 0.35 B 0.56 4 45 31,500
05-00500-00500 R0.5 0.75 A 4 45 31,100
05-00500-00501 R0.5 2.5 0.6 B 0.95 4 45 31,500
05-00500-00750 R0.75 1.1 A 4 45 31,100
05-00500-00751 R0.75 3.8 0.9 B 1.45 4 45 31,500
05-00500-01000 R1 1.5 A 4 45 31,100
05-00500-01001 R1 5 1.2 B 1.94 4 45 31,500
