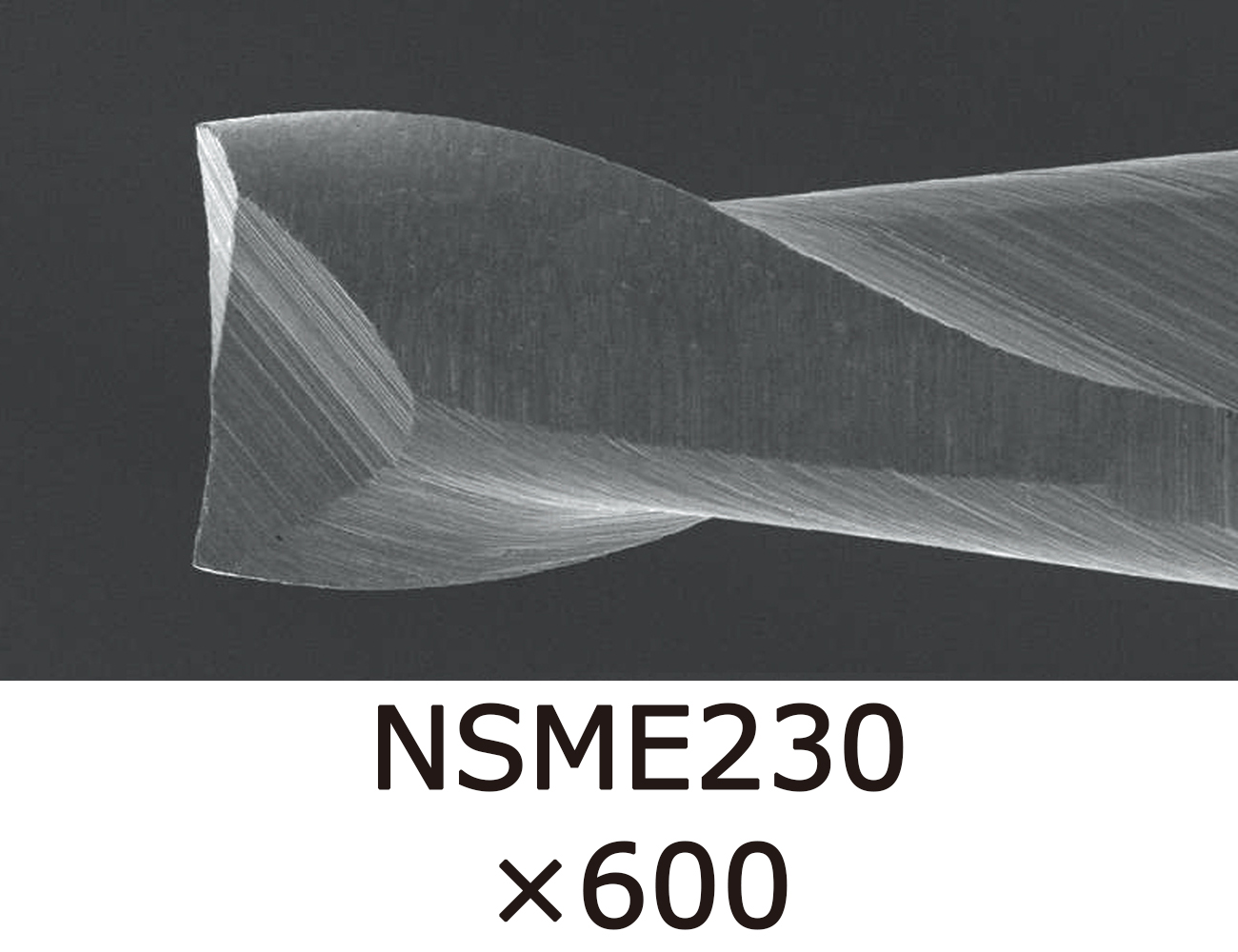

NSME230

Micro End Mill “MICRO EDGE”

●Ultra-high-precision accuracy is guaranteed with ±2μm tolerance of flute diameter and h3 tolerance of shank diameter (circularity 0.1μm)．
●Two flutes in 30 deg． 7 items from 0.03 to 0.09mm diameter．

  • Material
    Super Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • φd h3

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Line up

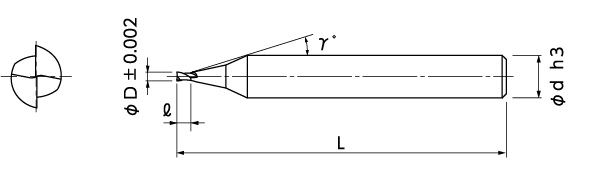

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
01-00002-00030 0.03 0.045 15° 4 45
01-00002-00040 0.04 0.06 15° 4 45
01-00002-00050 0.05 0.075 15° 4 45
01-00002-00060 0.06 0.09 15° 4 45
01-00002-00070 0.07 0.105 15° 4 45
01-00002-00080 0.08 0.12 15° 4 45
01-00002-00090 0.09 0.135 15° 4 45
