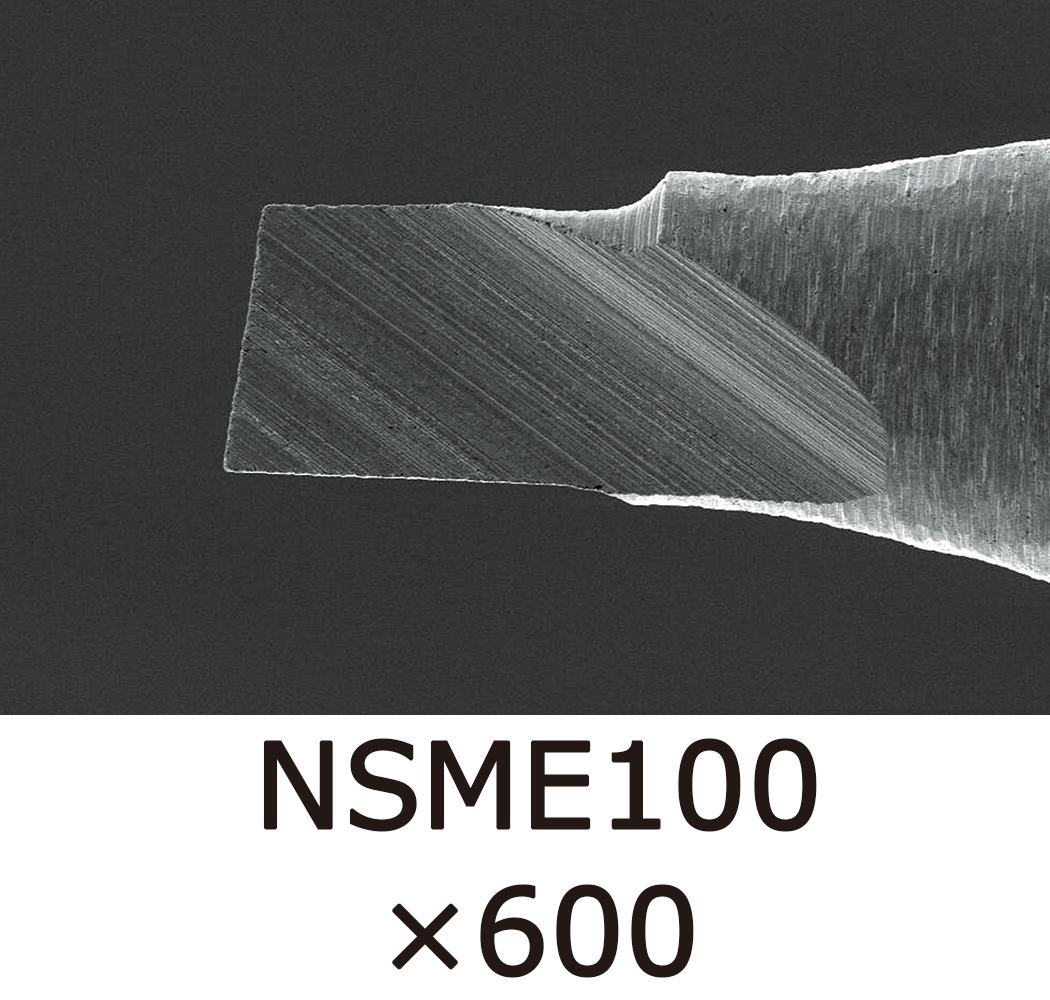

NSME100

Micro End Mill “MICRO EDGE”

●Ultra-high-precision accuracy is guaranteed with ±2μm tolerance of flute diameter and h3 tolerance of shank diameter (circularity 0.1μm).
●One straight flute,5 items from 0.01 to 0.05mm diameter.

  • Material
    Super Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    1 Flutes

  • Helix Angle
    0°

  • φd h3

  • Corner Shape
    Sharp Edge

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
~
52HRC
~
60HRC
~
65HRC
~
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel
~
52HRC
Resin
~
60HRC
Graphite
~
65HRC
Hard Brittle
Material
~
70HRC
Hard Brittle
Material
Stainless Steel

Leaflet

Line up

Unit [size: mm]

Code
No.

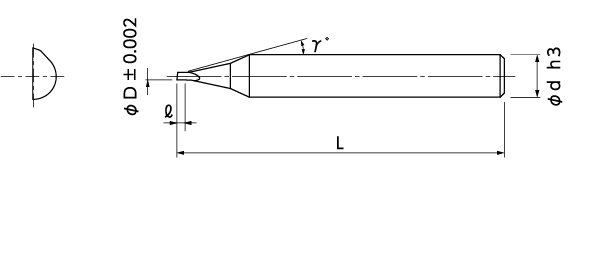

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
01-00001-00010 0.01 0.01 15° 4 45
01-00001-00020 0.02 0.02 15° 4 45
01-00001-00030 0.03 0.03 15° 4 45
01-00001-00040 0.04 0.04 15° 4 45
01-00001-00050 0.05 0.05 15° 4 45
