SMEZ120

CBN “MICRO EDGE Z”

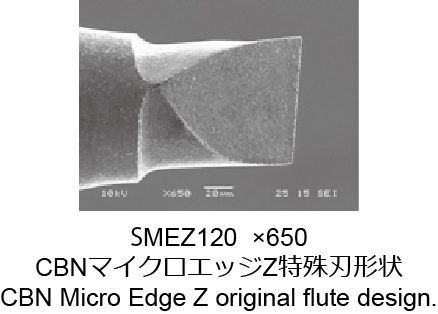

●NS engineering technology and selected CBN material realize sharp edge.
●Tolerance of flute diameter is ±2μm.
●Tolerance of shank diameter is h3 (0~-0.0025).

  • Material
    CubicBoron Nitride

  • Helix Angle
    -20°

  • Number of Flutes
    1 Flutes

  • Applications
    Slot Milling

  • Corner Shape
    Sharp Edge

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

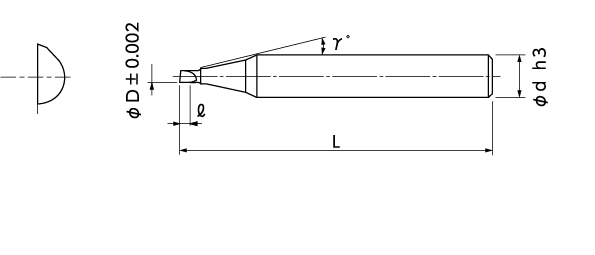

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
01-00480-00030 0.03 0.03 15° 4 50 60,000
01-00480-00040 0.04 0.04 15° 4 50 50,000
01-00480-00050 0.05 0.05 15° 4 50 45,000
01-00480-00060 0.06 0.06 15° 4 50 42,000
01-00480-00070 0.07 0.07 15° 4 50 42,000
01-00480-00080 0.08 0.08 15° 4 50 39,000
01-00480-00090 0.09 0.09 15° 4 50 39,000
01-00480-00100 0.1 0.1 15° 4 50 34,000
