MX435

MUGEN COATING 4-Flute LEAD35 End Mill

●L/D=3 and helix 35°for appropriate length of cut to avoid the inconveniences in size selection．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    35°

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

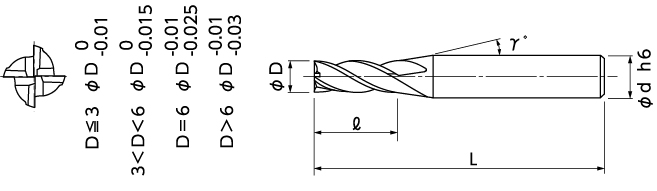

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00085-00100 1 3 12° 4 45
08-00085-00150 1.5 4.5 12° 4 45
08-00085-00200 2 6 12° 4 45
08-00085-00250 2.5 7.5 12° 4 45
08-00085-00300 3 9 12° 6 45
08-00085-00350 3.5 10.5 12° 6 45
08-00085-00400 4 12 12° 6 50
08-00085-00450 4.5 13.5 12° 6 50
08-00085-00500 5 15 12° 6 55
08-00085-00550 5.5 16.5 12° 6 60
08-00085-00600 6 18 － 6 60
08-00085-00800 8 24 － 8 65
08-00085-01000 10 30 － 10 75
08-00085-01200 12 36 － 12 80
