MXH235

MUGEN COATING PREMIUM 2-Flute LEAD35 End Mill

●Applicable for heat resistance alloy such as stainless steels and titanium alloy by MUGEN COATING PREMIUM．
●L/D=3 and helix 35°for appropriate length of cut to avoid the inconveniences in size selection．

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    35°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

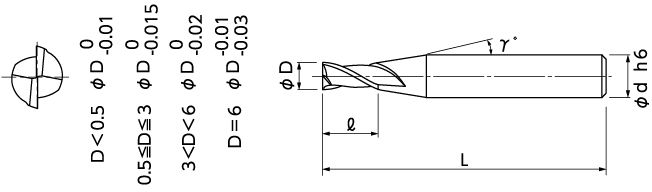

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00007-00010 0.1 0.3 12° 4 45
08-00007-00020 0.2 0.6 12° 4 45
08-00007-00030 0.3 0.9 12° 4 45
08-00007-00040 0.4 1.2 12° 4 45
08-00007-00050 0.5 1.5 12° 4 45
08-00007-00060 0.6 1.8 12° 4 45
08-00007-00070 0.7 2.1 12° 4 45
08-00007-00080 0.8 2.4 12° 4 45
08-00007-00090 0.9 2.7 12° 4 45
08-00007-00100 1 3 12° 4 45
08-00007-00110 1.1 3.3 12° 4 45
08-00007-00120 1.2 3.6 12° 4 45
08-00007-00130 1.3 3.9 12° 4 45
08-00007-00140 1.4 4.2 12° 4 45
08-00007-00150 1.5 4.5 12° 4 45
08-00007-00160 1.6 4.8 12° 4 45
08-00007-00170 1.7 5.1 12° 4 45
08-00007-00180 1.8 5.4 12° 4 45
08-00007-00190 1.9 5.7 12° 4 45
08-00007-00200 2 6 12° 4 45
08-00007-00210 2.1 6.3 12° 4 45
08-00007-00220 2.2 6.6 12° 4 45
08-00007-00230 2.3 6.9 12° 4 45
08-00007-00240 2.4 7.2 12° 4 45
08-00007-00250 2.5 7.5 12° 4 45
08-00007-00260 2.6 7.8 12° 4 45
08-00007-00270 2.7 8.1 12° 4 45
08-00007-00280 2.8 8.4 12° 4 45
08-00007-00290 2.9 8.7 12° 4 45
08-00007-00300 3 9 12° 6 45
08-00007-00350 3.5 10.5 12° 6 45
08-00007-00400 4 12 12° 6 50
08-00007-00450 4.5 13.5 12° 6 50
08-00007-00500 5 15 12° 6 55
08-00007-00550 5.5 16.5 12° 6 60
08-00007-00600 6 18 － 6 60
