MX235

MUGEN COATING 2-Flute LEAD35 End Mill

●L/D=3 and helix 35°for appropriate length of cut to avoid the inconveniences in size selection．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    35°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

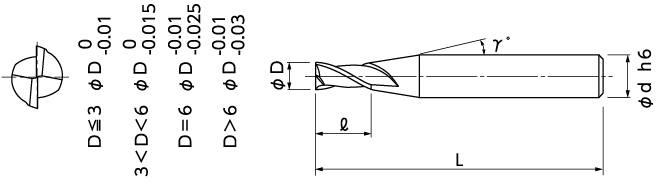

No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00035-00010 0.1 0.3 12° 4 45
08-00035-00020 0.2 0.6 12° 4 45
08-00035-00030 0.3 0.9 12° 4 45
08-00035-00040 0.4 1.2 12° 4 45
08-00035-00050 0.5 1.5 12° 4 45
08-00035-00060 0.6 1.8 12° 4 45
08-00035-00070 0.7 2.1 12° 4 45
08-00035-00080 0.8 2.4 12° 4 45
08-00035-00090 0.9 2.7 12° 4 45
08-00035-00100 1 3 12° 4 45
08-00035-00110 1.1 3.3 12° 4 45
08-00035-00120 1.2 3.6 12° 4 45
08-00035-00130 1.3 3.9 12° 4 45
08-00035-00140 1.4 4.2 12° 4 45
08-00035-00150 1.5 4.5 12° 4 45
08-00035-00160 1.6 4.8 12° 4 45
08-00035-00170 1.7 5.1 12° 4 45
08-00035-00180 1.8 5.4 12° 4 45
08-00035-00190 1.9 5.7 12° 4 45
08-00035-00200 2 6 12° 4 45
08-00035-00210 2.1 6.3 12° 4 45
08-00035-00220 2.2 6.6 12° 4 45
08-00035-00230 2.3 6.9 12° 4 45
08-00035-00240 2.4 7.2 12° 4 45
08-00035-00250 2.5 7.5 12° 4 45
08-00035-00260 2.6 7.8 12° 4 45
08-00035-00270 2.7 8.1 12° 4 45
08-00035-00280 2.8 8.4 12° 4 45
08-00035-00290 2.9 8.7 12° 4 45
08-00035-00300 3 9 12° 6 45
08-00035-00310 3.1 9.3 12° 6 45
08-00035-00320 3.2 9.6 12° 6 45
08-00035-00330 3.3 9.9 12° 6 45
08-00035-00340 3.4 10.2 12° 6 45
08-00035-00350 3.5 10.5 12° 6 45
08-00035-00360 3.6 10.8 12° 6 45
08-00035-00370 3.7 11.1 12° 6 45
08-00035-00380 3.8 11.4 12° 6 45
08-00035-00390 3.9 11.7 12° 6 45
08-00035-00400 4 12 12° 6 50
08-00035-00410 4.1 12.3 12° 6 50
08-00035-00420 4.2 12.6 12° 6 50
08-00035-00430 4.3 12.9 12° 6 50
08-00035-00440 4.4 13.2 12° 6 50
08-00035-00450 4.5 13.5 12° 6 50
08-00035-00460 4.6 13.8 12° 6 55
08-00035-00470 4.7 14.1 12° 6 55
08-00035-00480 4.8 14.4 12° 6 55
08-00035-00490 4.9 14.7 12° 6 55
08-00035-00500 5 15 12° 6 55
08-00035-00510 5.1 15.3 12° 6 55
08-00035-00520 5.2 15.6 12° 6 55
08-00035-00530 5.3 15.9 12° 6 55
08-00035-00540 5.4 16.2 12° 6 55
08-00035-00550 5.5 16.5 12° 6 60
08-00035-00560 5.6 16.8 12° 6 60
08-00035-00570 5.7 17.1 12° 6 60
08-00035-00580 5.8 17.4 12° 6 60
08-00035-00590 5.9 17.7 12° 6 60
08-00035-00600 6 18 － 6 60
08-00035-00700 7 21 12° 8 65
08-00035-00800 8 24 － 8 65
08-00035-00900 9 27 12° 10 75
08-00035-01000 10 30 － 10 75
08-00035-01200 12 36 － 12 80
