MX430

MUGEN COATING 4-Flute LEAD30 End Mill

●L/D=2 and helix 30°standard type，applicable to any milling process．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    30°

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

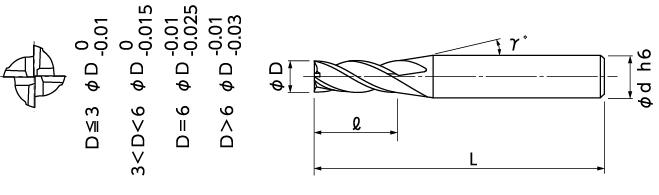

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00080-00100 1 2 12° 4 45
08-00080-00150 1.5 3 12° 4 45
08-00080-00200 2 4 12° 4 45
08-00080-00250 2.5 5 12° 4 45
08-00080-00300 3 6 12° 6 45
08-00080-00350 3.5 7 12° 6 45
08-00080-00400 4 8 12° 6 45
08-00080-00450 4.5 9 12° 6 50
08-00080-00500 5 10 12° 6 50
08-00080-00550 5.5 11 12° 6 50
08-00080-00600 6 12 － 6 50
08-00080-00800 8 16 － 8 65
08-00080-01000 10 20 － 10 75
08-00080-01200 12 24 － 12 80
