MX425

MUGEN COATING 4-Flute LEAD25 End Mill

●L/D=1 and helix 25°type，increased the rigidity to suppress chattering and minimized milling deflection．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    25°

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

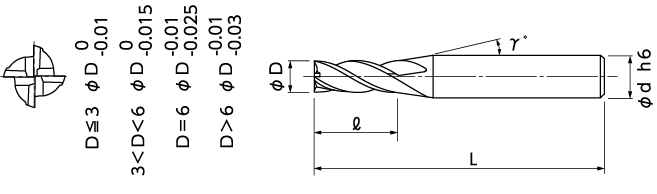

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00075-00100 1 1 12° 4 45
08-00075-00150 1.5 1.5 12° 4 45
08-00075-00200 2 2 12° 4 45
08-00075-00250 2.5 2.5 12° 4 45
08-00075-00300 3 3 12° 6 45
08-00075-00350 3.5 3.5 12° 6 45
08-00075-00400 4 4 12° 6 45
08-00075-00450 4.5 4.5 12° 6 50
08-00075-00500 5 5 12° 6 50
08-00075-00550 5.5 5.5 12° 6 50
08-00075-00600 6 6 － 6 50
08-00075-00800 8 8 － 8 65
08-00075-01000 10 10 － 10 75
08-00075-01200 12 12 － 12 80
