MX225

MUGEN-COATING 2-Flute LEAD25 End Mill

●L/D=1 and helix 25°to increase rigidity and realize high efficient machining.
●Suppress chattering and deflection in slotting process.

  • Material
    Micro Grain Carbide

  • Helix Angle
    25°

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Coating
    MUGEN-COATING

  • Number of Flutes
    2 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

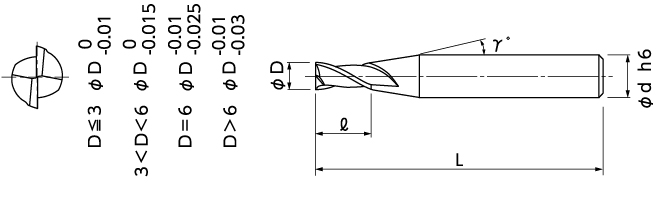

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00025-00030 0.3 0.3 12° 4 45 3,400
08-00025-00040 0.4 0.4 12° 4 45 3,800
08-00025-00050 0.5 0.5 12° 4 45 1,900
08-00025-00080 0.8 0.8 12° 4 45 1,900
08-00025-00100 1 1 12° 4 45 1,700
08-00025-00120 1.2 1.2 12° 4 45 1,900
08-00025-00150 1.5 1.5 12° 4 45 1,700
08-00025-00180 1.8 1.8 12° 4 45 1,900
08-00025-00200 2 2 12° 4 45 1,700
08-00025-00250 2.5 2.5 12° 4 45 1,700
08-00025-00300 3 3 12° 6 45 2,200
08-00025-00400 4 4 12° 6 45 2,400
08-00025-00500 5 5 12° 6 50 2,600
08-00025-00600 6 6 6 50 2,800
08-00025-00700 7 7 12° 8 65 8,700
08-00025-00800 8 8 8 65 7,200
08-00025-00900 9 9 12° 10 75 12,700
08-00025-01000 10 10 10 75 9,400
08-00025-01200 12 12 12 80 12,700
