MXH225

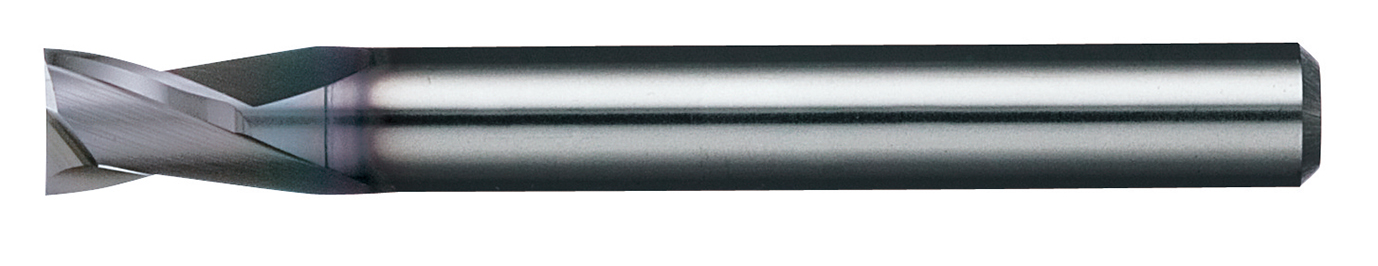

MUGEN COATING PREMIUM 2-Flute LEAD25 End Mill

●Applicable for heat resistance alloy such as stainless steels and titanium alloy by MUGEN COATING PREMIUM.
●L/D=1 and helix 25°to increase rigidity and realize high efficient machining.
●Suppress chattering and deflection in slotting process.

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    25°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material

52HRC

60HRC

65HRC

70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel

52HRC
Resin

60HRC
Graphite

65HRC
Hard Brittle
Material

70HRC
Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code
No.

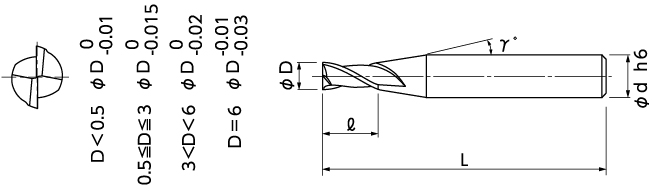

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00005-00010 0.1 0.1 12° 4 45
08-00005-00020 0.2 0.2 12° 4 45
08-00005-00030 0.3 0.3 12° 4 45
08-00005-00040 0.4 0.4 12° 4 45
08-00005-00050 0.5 0.5 12° 4 45
08-00005-00060 0.6 0.6 12° 4 45
08-00005-00070 0.7 0.7 12° 4 45
08-00005-00080 0.8 0.8 12° 4 45
08-00005-00090 0.9 0.9 12° 4 45
08-00005-00100 1 1 12° 4 45
08-00005-00110 1.1 1.1 12° 4 45
08-00005-00120 1.2 1.2 12° 4 45
08-00005-00130 1.3 1.3 12° 4 45
08-00005-00140 1.4 1.4 12° 4 45
08-00005-00150 1.5 1.5 12° 4 45
08-00005-00160 1.6 1.6 12° 4 45
08-00005-00170 1.7 1.7 12° 4 45
08-00005-00180 1.8 1.8 12° 4 45
08-00005-00190 1.9 1.9 12° 4 45
08-00005-00200 2 2 12° 4 45
08-00005-00250 2.5 2.5 12° 4 45
08-00005-00300 3 3 12° 6 45
08-00005-00400 4 4 12° 6 45
08-00005-00500 5 5 12° 6 50
08-00005-00600 6 6 6 50
