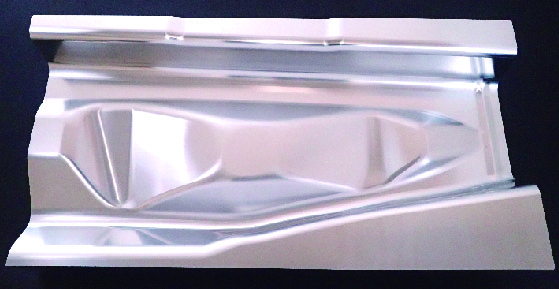

SSPB220 Press Die for Auto Parts

Work material: DC53(60HRC)
Work size: 200x100 mm
Machining depth: 32.115mm
Coolant: Oil mist
Machining time: 20hr 27min

Tool

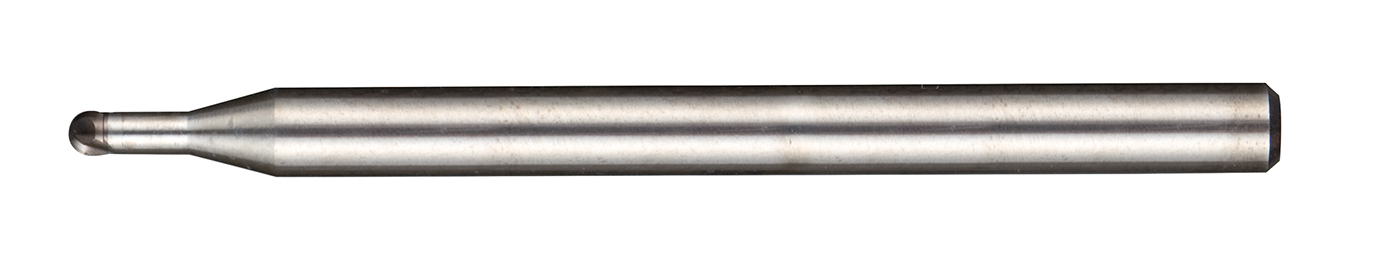

SSPB220



●Adopted spiral ball shape to improve sharpness of cutting edge.
●Adopted cutting edge shape to improve the chipping resistance of cutting edge.
●When peripheral cutting edge makes contact with cutting surface,vibration occurs by an increase in cutting resistance and it affects tool life and cutting surface quality.The influence can be reduced by adoption of the strong back taper shape.
●Enlarged standard tool size up to R3 to extend application range.

Cutting condition

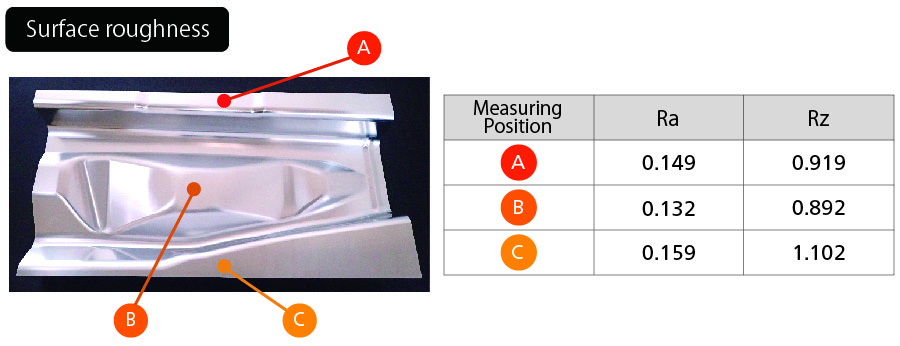

Result
