Technology

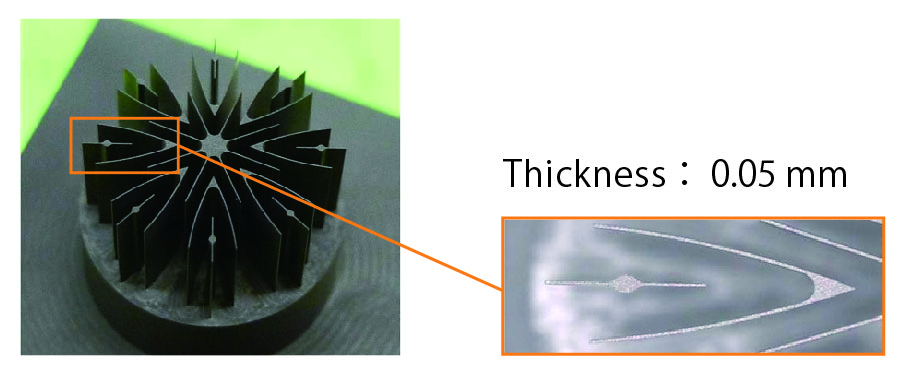

DCHR230 Ultra-thin Plate Machining
Work material: Graphite (TTK-5)
Work size: φ14 mm
Machining depth: 6mm
Coolant: Air blow
Machining time: 5hr 13min
Tool

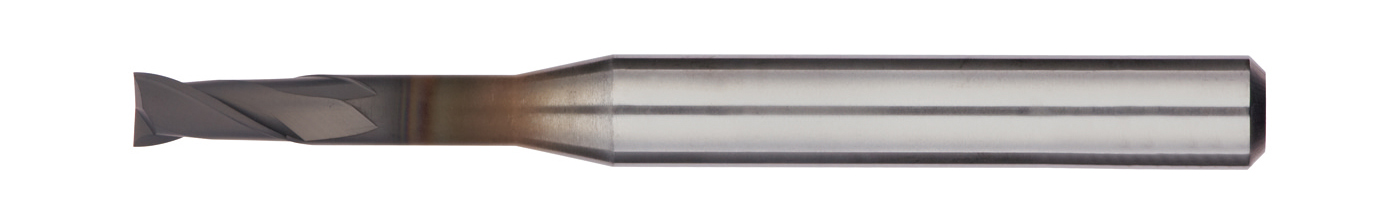

DCHR230
●Original DIAMOND COATING realized a long tool life for the machining of Graphite，silicon-aluminium alloy and brittle materials．
●Long neck design is suited for the machining of narrow and deep area．

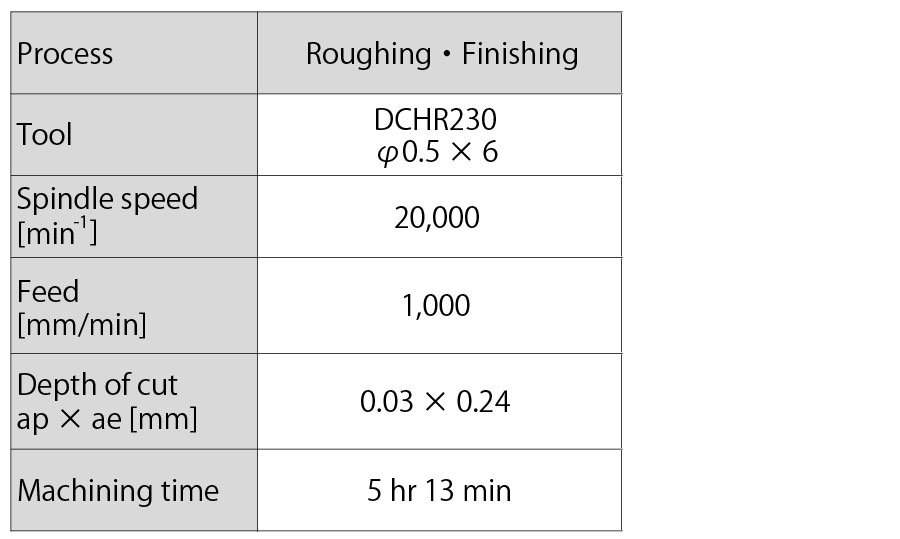

Cutting condition
Enlarge image
