AL3D-2DLC

DLC COATING 2-Flute Medium End Mill for Aluminum

●AL-series realized a stable and high efficient machining.
●Our original DLC COATING are adopted,it is suitable for cutting for long time.

  • Material
    Regular Grain Carbide

  • Helix Angle
    45°

  • Coating
    DLC COATING

  • Number of Flutes
    2 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

  • Corner Shape
    Sharp Edge

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

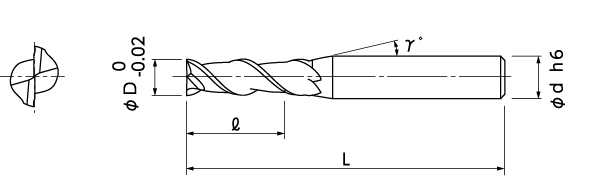

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
01-00635-00100 1 3 4 45 5,600
01-00635-00150 1.5 4.5 4 45 5,600
01-00635-00200 2 6 4 45 5,600
01-00635-00250 2.5 7.5 4 45 5,600
01-00635-00300 3 9 6 50 6,800
01-00635-00400 4 12 6 50 7,000
01-00635-00500 5 15 6 55 7,500
01-00635-00600 6 18 6 60 7,800
01-00635-00700 7 21 8 70 12,600
01-00635-00800 8 24 8 70 12,600
01-00635-00900 9 27 10 75 15,900
01-00635-01000 10 30 10 75 15,900
01-00635-01100 11 33 12 90 21,800
01-00635-01200 12 36 12 90 21,800
