ALB225-DLC

DLC COATING Ball End Mill for Aluminium

●Adopted NS TOOL original DLC COATING that suitable for long time machining．

  • Coating
    DLC COATING

  • Material
    Regular Grain Carbide

  • Number of Flutes
    2 Flutes

  • Helix Angle
    25°

  • φd h5

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel
〜
55HRC		 ～
65HRC		 ～
70HRC
Carbon Steel Alloy Steel
Prehardened
Steel		 Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel		 ～
55HRC		 ～
65HRC
～
70HRC

Leaflet

Line up

Unit [size: mm / Retail Price: JPY]

Code

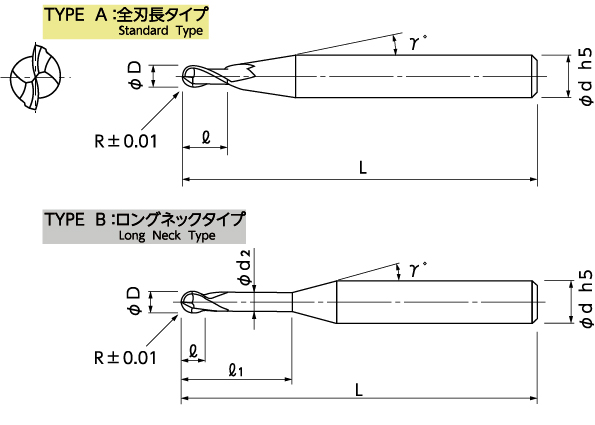

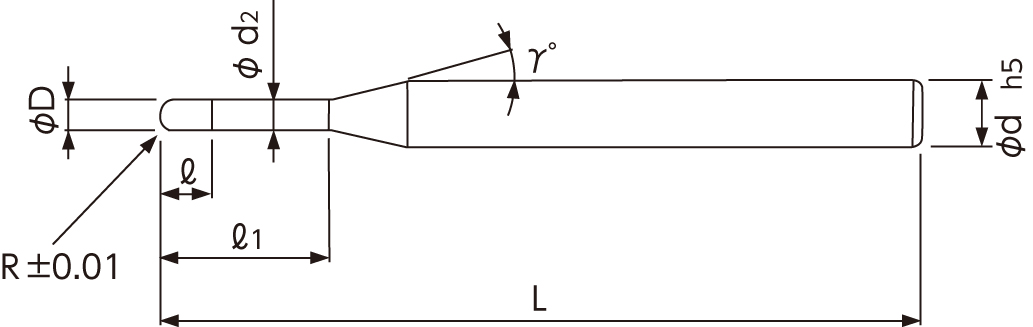

No.		 (R)Radius (l)Length of Cut (l1)Under neck Length Type (D)Dia. (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
01-00668-03001 R0.3 0.45 3 B 0.6 0.56 12° 4 60 6,800
01-00668-04001 R0.4 0.6 4 B 0.8 0.76 12° 4 60 7,200
01-00668-05001 R0.5 2 － A 1 － 12° 4 60 5,600
01-00668-05011 R0.5 0.75 5 B 1 0.95 12° 4 60 6,600
01-00668-05013 R0.5 0.75 10 B 1 0.95 12° 4 60 6,900
01-00668-07501 R0.75 3 － A 1.5 － 12° 4 60 6,300
01-00668-07511 R0.75 1.1 7.5 B 1.5 1.45 12° 4 60 6,700
01-00668-07513 R0.75 1.1 15 B 1.5 1.45 12° 4 60 7,800
01-00668-10001 R1 4 － A 2 － 12° 4 60 5,500
01-00668-10011 R1 1.5 10 B 2 1.94 12° 4 60 6,300
01-00668-10013 R1 1.5 20 B 2 1.94 12° 4 60 6,700
01-00668-15001 R1.5 6 － A 3 － 12° 6 60 6,300
01-00668-15011 R1.5 2.5 15 B 3 2.85 12° 6 60 7,500
01-00668-15013 R1.5 2.5 30 B 3 2.85 12° 6 70 8,700
01-00668-20001 R2 8 － A 4 － 12° 6 70 7,100
01-00668-20011 R2 3 20 B 4 3.8 12° 6 80 8,400
01-00668-20013 R2 3 40 B 4 3.8 12° 6 90 9,900
01-00668-25001 R2.5 10 － A 5 － 12° 6 80 7,600
01-00668-25011 R2.5 3.5 25 B 5 4.8 12° 6 80 9,200
01-00668-25013 R2.5 3.5 50 B 5 4.8 12° 6 100 11,600
01-00668-30001 R3 12 － A 6 － － 6 90 8,600
01-00668-30011 R3 6 30 B 6 5.8 － 6 90 10,300
01-00668-30013 R3 6 60 B 6 5.8 － 6 120 12,600
01-00668-40001 R4 16 － A 8 － － 8 90 14,200
01-00668-50001 R5 20 － A 10 － － 10 100 17,400
01-00668-60001 R6 24 － A 12 － － 12 110 23,700
