MHR230

MUGEN COATING 2-Flute Long Neck End Mill

●MUGEN COATING has been put on our original end mill for deep rib．
●The Long neck type is suitable for narrow and deep machining.
●Total 217 sizes!

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

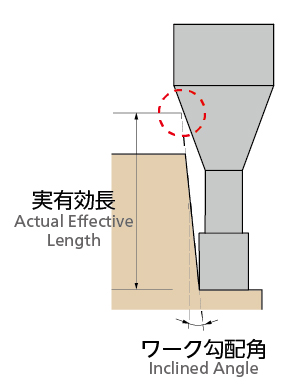

Line up

Unit [size: mm]

Code

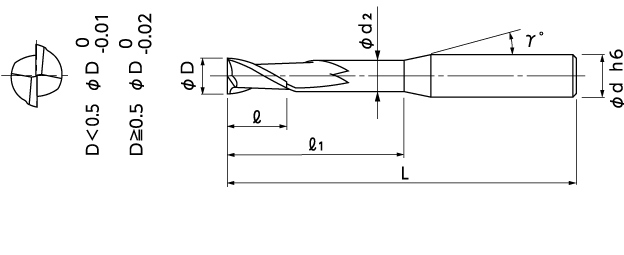

No.		 (D)Dia. (l1)Under Neck Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00200-01003 0.1 0.3 0.15 0.085 12° 4 45
08-00200-01005 0.1 0.5 0.15 0.085 12° 4 45
08-00200-01007 0.1 0.75 0.15 0.085 12° 4 45
08-00200-01010 0.1 1 0.15 0.085 12° 4 45
08-00200-01503 0.15 0.3 0.2 0.13 12° 4 45
08-00200-01505 0.15 0.5 0.2 0.13 12° 4 45
08-00200-01507 0.15 0.75 0.2 0.13 12° 4 45
08-00200-01510 0.15 1 0.2 0.13 12° 4 45
08-00200-01515 0.15 1.5 0.2 0.13 12° 4 45
08-00200-02005 0.2 0.5 0.3 0.18 12° 4 45
08-00200-02007 0.2 0.75 0.3 0.18 12° 4 45
08-00200-02010 0.2 1 0.3 0.18 12° 4 45
08-00200-02015 0.2 1.5 0.3 0.18 12° 4 45
08-00200-02020 0.2 2 0.3 0.18 12° 4 45
08-00200-02025 0.2 2.5 0.3 0.18 12° 4 45
08-00200-02030 0.2 3 0.3 0.18 12° 4 45
08-00200-02035 0.2 3.5 0.3 0.18 12° 4 45
08-00200-02040 0.2 4 0.3 0.18 12° 4 45
08-00200-03010 0.3 1 0.4 0.28 12° 4 45
08-00200-03015 0.3 1.5 0.4 0.28 12° 4 45
08-00200-03020 0.3 2 0.4 0.28 12° 4 45
08-00200-03025 0.3 2.5 0.4 0.28 12° 4 45
08-00200-03030 0.3 3 0.4 0.28 12° 4 45
08-00200-03040 0.3 4 0.4 0.28 12° 4 45
08-00200-03050 0.3 5 0.4 0.28 12° 4 45
08-00200-03060 0.3 6 0.4 0.28 12° 4 45
08-00200-03090 0.3 9 0.4 0.28 12° 4 45
08-00200-04010 0.4 1 0.6 0.37 12° 4 45
08-00200-04015 0.4 1.5 0.6 0.37 12° 4 45
08-00200-04020 0.4 2 0.6 0.37 12° 4 45
08-00200-04025 0.4 2.5 0.6 0.37 12° 4 45
08-00200-04030 0.4 3 0.6 0.37 12° 4 45
08-00200-04035 0.4 3.5 0.6 0.37 12° 4 45
08-00200-04040 0.4 4 0.6 0.37 12° 4 45
08-00200-04050 0.4 5 0.6 0.37 12° 4 45
08-00200-04060 0.4 6 0.6 0.37 12° 4 45
08-00200-04070 0.4 7 0.6 0.37 12° 4 45
08-00200-04080 0.4 8 0.6 0.37 12° 4 45
08-00200-04090 0.4 9 0.6 0.37 12° 4 45
08-00200-04100 0.4 10 0.6 0.37 12° 4 45
08-00200-04120 0.4 12 0.6 0.37 12° 4 45
08-00200-05010 0.5 1 0.7 0.46 12° 4 45
08-00200-05015 0.5 1.5 0.7 0.46 12° 4 45
08-00200-05020 0.5 2 0.7 0.46 12° 4 45
08-00200-05025 0.5 2.5 0.7 0.46 12° 4 45
08-00200-05030 0.5 3 0.7 0.46 12° 4 45
08-00200-05035 0.5 3.5 0.7 0.46 12° 4 45
08-00200-05040 0.5 4 0.7 0.46 12° 4 45
08-00200-05045 0.5 4.5 0.7 0.46 12° 4 45
08-00200-05050 0.5 5 0.7 0.46 12° 4 45
08-00200-05060 0.5 6 0.7 0.46 12° 4 45
08-00200-05070 0.5 7 0.7 0.46 12° 4 45
08-00200-05080 0.5 8 0.7 0.46 12° 4 50
08-00200-05090 0.5 9 0.7 0.46 12° 4 50
08-00200-05100 0.5 10 0.7 0.46 12° 4 50
08-00200-05120 0.5 12 0.7 0.46 12° 4 50
08-00200-05150 0.5 15 0.7 0.46 12° 4 50
08-00200-06015 0.6 1.5 0.9 0.56 12° 4 45
08-00200-06020 0.6 2 0.9 0.56 12° 4 45
08-00200-06030 0.6 3 0.9 0.56 12° 4 45
08-00200-06040 0.6 4 0.9 0.56 12° 4 45
08-00200-06050 0.6 5 0.9 0.56 12° 4 45
08-00200-06060 0.6 6 0.9 0.56 12° 4 45
08-00200-06070 0.6 7 0.9 0.56 12° 4 45
08-00200-06080 0.6 8 0.9 0.56 12° 4 50
08-00200-06090 0.6 9 0.9 0.56 12° 4 50
08-00200-06100 0.6 10 0.9 0.56 12° 4 50
08-00200-06120 0.6 12 0.9 0.56 12° 4 50
08-00200-06150 0.6 15 0.9 0.56 12° 4 50
08-00200-06180 0.6 18 0.9 0.56 12° 4 50
08-00200-07020 0.7 2 1 0.66 12° 4 45
08-00200-07040 0.7 4 1 0.66 12° 4 45
08-00200-07060 0.7 6 1 0.66 12° 4 45
08-00200-07080 0.7 8 1 0.66 12° 4 50
08-00200-07100 0.7 10 1 0.66 12° 4 50
08-00200-08030 0.8 3 1.2 0.76 12° 4 45
08-00200-08040 0.8 4 1.2 0.76 12° 4 45
08-00200-08050 0.8 5 1.2 0.76 12° 4 45
08-00200-08060 0.8 6 1.2 0.76 12° 4 45
08-00200-08080 0.8 8 1.2 0.76 12° 4 50
08-00200-08100 0.8 10 1.2 0.76 12° 4 50
08-00200-08120 0.8 12 1.2 0.76 12° 4 50
08-00200-08140 0.8 14 1.2 0.76 12° 4 50
08-00200-08160 0.8 16 1.2 0.76 12° 4 50
08-00200-08200 0.8 20 1.2 0.76 12° 4 60
08-00200-08240 0.8 24 1.2 0.76 12° 4 60
08-00200-09040 0.9 4 1.4 0.86 12° 4 45
08-00200-09060 0.9 6 1.4 0.86 12° 4 45
08-00200-09080 0.9 8 1.4 0.86 12° 4 50
08-00200-09100 0.9 10 1.4 0.86 12° 4 50
08-00200-09120 0.9 12 1.4 0.86 12° 4 50
08-00200-09150 0.9 15 1.4 0.86 12° 4 60
08-00200-10020 1 2 1.5 0.95 12° 4 50
08-00200-10030 1 3 1.5 0.95 12° 4 50
08-00200-10040 1 4 1.5 0.95 12° 4 50
08-00200-10050 1 5 1.5 0.95 12° 4 50
08-00200-10060 1 6 1.5 0.95 12° 4 50
08-00200-10070 1 7 1.5 0.95 12° 4 50
08-00200-10080 1 8 1.5 0.95 12° 4 50
08-00200-10090 1 9 1.5 0.95 12° 4 50
08-00200-10100 1 10 1.5 0.95 12° 4 50
08-00200-10120 1 12 1.5 0.95 12° 4 50
08-00200-10140 1 14 1.5 0.95 12° 4 50
08-00200-10160 1 16 1.5 0.95 12° 4 60
08-00200-10180 1 18 1.5 0.95 12° 4 60
08-00200-10200 1 20 1.5 0.95 12° 4 60
08-00200-10220 1 22 1.5 0.95 12° 4 60
08-00200-10250 1 25 1.5 0.95 12° 4 70
08-00200-10300 1 30 1.5 0.95 12° 4 70
08-00200-12040 1.2 4 1.8 1.15 12° 4 50
08-00200-12060 1.2 6 1.8 1.15 12° 4 50
08-00200-12080 1.2 8 1.8 1.15 12° 4 50
08-00200-12100 1.2 10 1.8 1.15 12° 4 50
08-00200-12120 1.2 12 1.8 1.15 12° 4 50
08-00200-12160 1.2 16 1.8 1.15 12° 4 60
08-00200-12200 1.2 20 1.8 1.15 12° 4 60
08-00200-14060 1.4 6 2.1 1.35 12° 4 50
08-00200-14080 1.4 8 2.1 1.35 12° 4 50
08-00200-14100 1.4 10 2.1 1.35 12° 4 50
08-00200-14120 1.4 12 2.1 1.35 12° 4 50
08-00200-14140 1.4 14 2.1 1.35 12° 4 60
08-00200-14160 1.4 16 2.1 1.35 12° 4 60
08-00200-14220 1.4 22 2.1 1.35 12° 4 60
08-00200-15040 1.5 4 2.3 1.45 12° 4 50
08-00200-15060 1.5 6 2.3 1.45 12° 4 50
08-00200-15080 1.5 8 2.3 1.45 12° 4 50
08-00200-15100 1.5 10 2.3 1.45 12° 4 50
08-00200-15120 1.5 12 2.3 1.45 12° 4 50
08-00200-15140 1.5 14 2.3 1.45 12° 4 60
08-00200-15160 1.5 16 2.3 1.45 12° 4 60
08-00200-15180 1.5 18 2.3 1.45 12° 4 60
08-00200-15200 1.5 20 2.3 1.45 12° 4 60
08-00200-15250 1.5 25 2.3 1.45 12° 4 70
08-00200-15300 1.5 30 2.3 1.45 12° 4 70
08-00200-15350 1.5 35 2.3 1.45 12° 4 80
08-00200-15380 1.5 38 2.3 1.45 12° 4 80
08-00200-15400 1.5 40 2.3 1.45 12° 4 80
08-00200-15450 1.5 45 2.3 1.45 12° 4 80
08-00200-16060 1.6 6 2.4 1.55 12° 4 50
08-00200-16080 1.6 8 2.4 1.55 12° 4 50
08-00200-16100 1.6 10 2.4 1.55 12° 4 50
08-00200-16120 1.6 12 2.4 1.55 12° 4 50
08-00200-16140 1.6 14 2.4 1.55 12° 4 60
08-00200-16160 1.6 16 2.4 1.55 12° 4 60
08-00200-16180 1.6 18 2.4 1.55 12° 4 60
08-00200-16200 1.6 20 2.4 1.55 12° 4 60
08-00200-16260 1.6 26 2.4 1.55 12° 4 60
08-00200-18060 1.8 6 2.7 1.75 12° 4 50
08-00200-18080 1.8 8 2.7 1.75 12° 4 50
08-00200-18100 1.8 10 2.7 1.75 12° 4 50
08-00200-18120 1.8 12 2.7 1.75 12° 4 50
08-00200-18140 1.8 14 2.7 1.75 12° 4 50
08-00200-18160 1.8 16 2.7 1.75 12° 4 60
08-00200-18180 1.8 18 2.7 1.75 12° 4 60
08-00200-18200 1.8 20 2.7 1.75 12° 4 60
08-00200-18250 1.8 25 2.7 1.75 12° 4 70
08-00200-20040 2 4 3 1.94 12° 4 50
08-00200-20060 2 6 3 1.94 12° 4 50
08-00200-20080 2 8 3 1.94 12° 4 50
08-00200-20100 2 10 3 1.94 12° 4 50
08-00200-20120 2 12 3 1.94 12° 4 50
08-00200-20140 2 14 3 1.94 12° 4 60
08-00200-20160 2 16 3 1.94 12° 4 60
08-00200-20180 2 18 3 1.94 12° 4 60
08-00200-20200 2 20 3 1.94 12° 4 60
08-00200-20250 2 25 3 1.94 12° 4 70
08-00200-20300 2 30 3 1.94 12° 4 70
08-00200-20350 2 35 3 1.94 12° 4 80
08-00200-20400 2 40 3 1.94 12° 4 90
08-00200-20500 2 50 3 1.94 12° 4 100
08-00200-20600 2 60 3 1.94 12° 4 110
08-00200-25080 2.5 8 3.7 2.4 12° 4 50
08-00200-25100 2.5 10 3.7 2.4 12° 4 50
08-00200-25120 2.5 12 3.7 2.4 12° 4 50
08-00200-25140 2.5 14 3.7 2.4 12° 4 50
08-00200-25160 2.5 16 3.7 2.4 12° 4 60
08-00200-25180 2.5 18 3.7 2.4 12° 4 60
08-00200-25200 2.5 20 3.7 2.4 12° 4 60
08-00200-25250 2.5 25 3.7 2.4 12° 4 70
08-00200-25300 2.5 30 3.7 2.4 12° 4 70
08-00200-25400 2.5 40 3.7 2.4 12° 4 90
08-00200-25500 2.5 50 3.7 2.4 12° 4 100
08-00200-30080 3 8 4.5 2.85 12° 6 50
08-00200-30100 3 10 4.5 2.85 12° 6 50
08-00200-30120 3 12 4.5 2.85 12° 6 50
08-00200-30140 3 14 4.5 2.85 12° 6 50
08-00200-30160 3 16 4.5 2.85 12° 6 60
08-00200-30180 3 18 4.5 2.85 12° 6 60
08-00200-30200 3 20 4.5 2.85 12° 6 60
08-00200-30250 3 25 4.5 2.85 12° 6 70
08-00200-30300 3 30 4.5 2.85 12° 6 70
08-00200-30350 3 35 4.5 2.85 12° 6 80
08-00200-30400 3 40 4.5 2.85 12° 6 90
08-00200-30500 3 50 4.5 2.85 12° 6 100
08-00200-40120 4 12 6 3.8 12° 6 50
08-00200-40160 4 16 6 3.8 12° 6 60
08-00200-40200 4 20 6 3.8 12° 6 60
08-00200-40250 4 25 6 3.8 12° 6 70
08-00200-40300 4 30 6 3.8 12° 6 70
08-00200-40350 4 35 6 3.8 12° 6 80
08-00200-40400 4 40 6 3.8 12° 6 90
08-00200-40450 4 45 6 3.8 12° 6 90
08-00200-40500 4 50 6 3.8 12° 6 100
08-00200-40600 4 60 6 3.8 12° 6 110
08-00200-50160 5 16 7.5 4.8 12° 6 60
08-00200-50200 5 20 7.5 4.8 12° 6 60
08-00200-50250 5 25 7.5 4.8 12° 6 70
08-00200-50300 5 30 7.5 4.8 12° 6 80
08-00200-50350 5 35 7.5 4.8 12° 6 80
08-00200-50400 5 40 7.5 4.8 12° 6 90
08-00200-50500 5 50 7.5 4.8 12° 6 110
08-00200-50600 5 60 7.5 4.8 12° 6 120
08-00200-60200 6 20 9 5.8 － 6 80
08-00200-60300 6 30 9 5.8 － 6 90
08-00200-60400 6 40 9 5.8 － 6 100
08-00200-60500 6 50 9 5.8 － 6 110
08-00200-60600 6 60 9 5.8 － 6 120
