MHD645

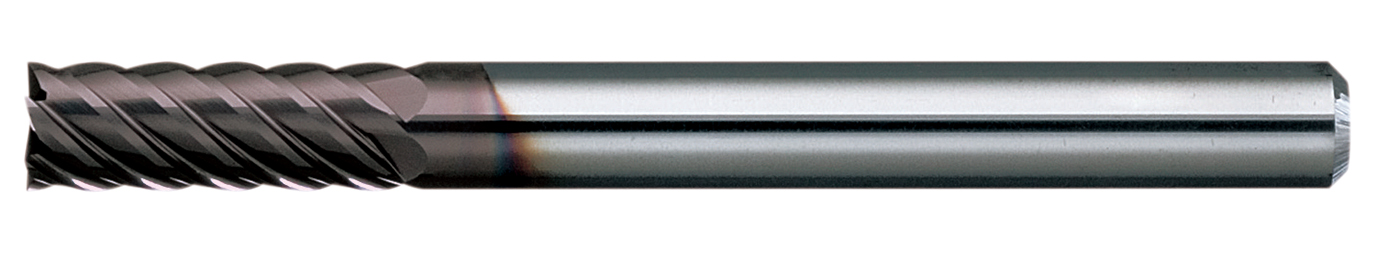

MUGEN COATING 6-Flute End Mill for Hardened Steel

●Machineable to high hardened steels (48~55HRC).
●Realized high precision finishing without the deflection.

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Number of Flutes
    6 Flutes

  • Helix Angle
    45°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material

55HRC

65HRC

70HRC

Carbon Stee Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel

55HRC
Resin

65HRC
Graphite

70HRC
Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code
No.

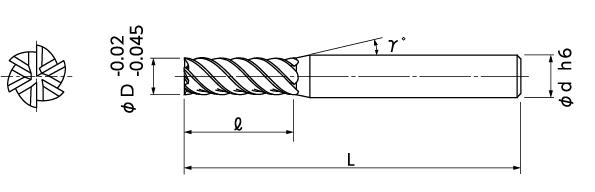

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00410-00500 5 10 12° 6 60
08-00410-00600 6 15 6 60
08-00410-00800 8 20 8 65
08-00410-01000 10 25 10 75
08-00410-01200 12 30 12 80
