MHDH645

MUGEN COATING PREMIUM 6-Flute Square End Mill for Hardened Steel

●L/D=2 and L/D=3 length of cut selection．
●Realized stably long tool life against high hardened steels (48～65HRC)．
●Improved milling deflection and accuracy by advanced flute design．

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 65HRC

  • Number of Flutes
    6 Flutes

  • Helix Angle
    45°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

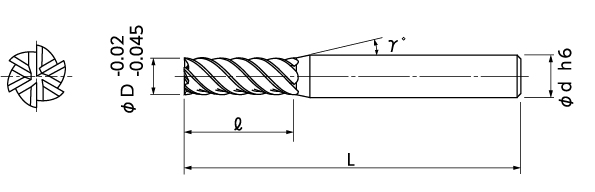

No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00428-00500 5 10 12° 6 60
08-00428-00501 5 15 12° 6 65
08-00428-00600 6 12 － 6 60
08-00428-00601 6 18 － 6 65
08-00428-00800 8 16 － 8 65
08-00428-00801 8 24 － 8 70
08-00428-01000 10 20 － 10 75
08-00428-01001 10 30 － 10 80
08-00428-01200 12 24 － 12 80
08-00428-01201 12 36 － 12 90
