MDR-PD

MUGEN COATING Point Drill (Drill for Guide Hole)

●Aiming at guide hole for MUGEN COATING miniature drill. Also used for drilling on thin materials.
●Positioning of drill center is improved by web thinning which brings stable drilling.

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    25°

  • Applications
    Drilling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
~
52HRC
~
60HRC
~
65HRC
~
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel
~
52HRC
Resin
~
60HRC
Graphite
~
65HRC
Hard Brittle
Material
~
70HRC
Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code
No.

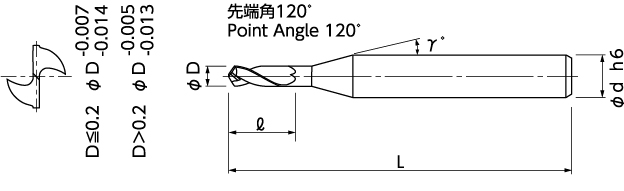

(D)Dia. (l)Flute Length (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
04-00210-00100 0.1 0.2 15° 3 38
04-00210-00200 0.2 0.4 15° 3 38
04-00210-00300 0.3 0.6 15° 3 38
04-00210-00400 0.4 0.6 15° 3 38
04-00210-00500 0.5 1 15° 3 38
04-00210-00600 0.6 1 15° 3 38
04-00210-00700 0.7 1.2 15° 3 38
04-00210-00800 0.8 1.2 15° 3 38
04-00210-00900 0.9 1.8 15° 3 38
04-00210-01000 1 2 15° 3 38
