DCHR230

DIAMOND COATING 2-Flute Long Neck End Mill

●Original DIAMOND COATING realized a long tool life for the machining of Graphite,silicon-aluminum alloy and brittle materials.
●Long neck design is suited for the machining of narrow and deep area.

  • Material
    Regular Grain Carbide

  • Helix Angle
    30°

  • Coating
    DIAMOND COATING

  • Number of Flutes
    2 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

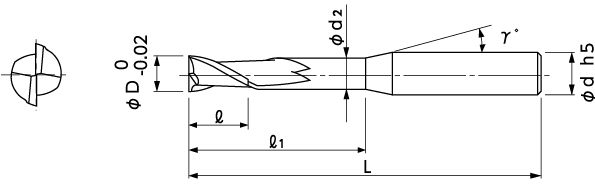

(D)Dia. (l1)Effective length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
05-00200-00502 0.5 2 1 0.46 12° 4 45 18,000
05-00200-00504 0.5 4 1 0.46 12° 4 45 18,000
05-00200-00506 0.5 6 1 0.46 12° 4 45 18,000
05-00200-01004 1 4 2 0.95 12° 4 50 18,000
05-00200-01006 1 6 2 0.95 12° 4 50 18,000
05-00200-01008 1 8 2 0.95 12° 4 50 18,000
05-00200-01010 1 10 2 0.95 12° 4 50 18,000
05-00200-01506 1.5 6 3 1.45 12° 4 50 18,000
05-00200-01512 1.5 12 3 1.45 12° 4 50 18,000
05-00200-01520 1.5 20 3 1.45 12° 4 60 18,000
05-00200-02006 2 6 4 1.94 12° 4 50 18,000
05-00200-02010 2 10 4 1.94 12° 4 50 18,000
05-00200-02016 2 16 4 1.94 12° 4 60 18,000
05-00200-02020 2 20 4 1.94 12° 4 60 18,000
05-00200-03016 3 16 6 2.85 12° 6 60 22,100
05-00200-03030 3 30 6 2.85 12° 6 70 25,400
05-00200-04020 4 20 8 3.8 12° 6 60 24,500
05-00200-04040 4 40 8 3.8 12° 6 90 27,600
05-00200-06030 6 30 12 5.8 6 90 25,400
