MXH235P

MUGEN-COATING PREMIUM 2-Flute Sharp Edge LEAD35 End Mill

●Applicable for heat resistance alloy such as stainless steels and titanium alloy by MUGEN-COATING PREMIUM with sharp edge type.
●L/D=3 and helix 35°.

  • Material
    Micro Grain Carbide

  • Helix Angle
    35°

  • Coating
    MUGEN-COATING PREMIUM

  • Number of Flutes
    2 Flutes

  • Applications
    Side Milling

  • Applications
    Face Milling

  • Corner Shape
    Sharp Edge

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

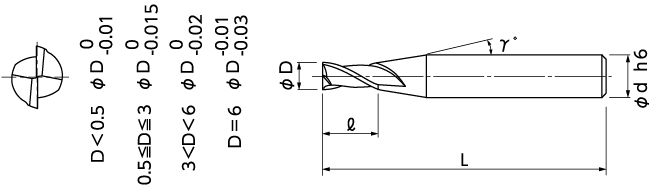

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00017-00010 0.1 0.3 12° 4 45 7,200
08-00017-00020 0.2 0.6 12° 4 45 4,700
08-00017-00030 0.3 0.9 12° 4 45 3,800
08-00017-00040 0.4 1.2 12° 4 45 4,200
08-00017-00050 0.5 1.5 12° 4 45 2,500
08-00017-00060 0.6 1.8 12° 4 45 3,700
08-00017-00070 0.7 2.1 12° 4 45 4,000
08-00017-00080 0.8 2.4 12° 4 45 2,500
08-00017-00090 0.9 2.7 12° 4 45 4,000
08-00017-00100 1 3 12° 4 45 2,200
08-00017-00110 1.1 3.3 12° 4 45 3,900
08-00017-00120 1.2 3.6 12° 4 45 2,500
08-00017-00130 1.3 3.9 12° 4 45 3,900
08-00017-00140 1.4 4.2 12° 4 45 3,900
08-00017-00150 1.5 4.5 12° 4 45 2,200
08-00017-00160 1.6 4.8 12° 4 45 3,900
08-00017-00170 1.7 5.1 12° 4 45 3,900
08-00017-00180 1.8 5.4 12° 4 45 2,500
08-00017-00190 1.9 5.7 12° 4 45 3,900
08-00017-00200 2 6 12° 4 45 2,300
08-00017-00210 2.1 6.3 12° 4 45 3,900
08-00017-00220 2.2 6.6 12° 4 45 3,900
08-00017-00230 2.3 6.9 12° 4 45 3,900
08-00017-00240 2.4 7.2 12° 4 45 3,900
08-00017-00250 2.5 7.5 12° 4 45 2,300
08-00017-00260 2.6 7.8 12° 4 45 5,000
08-00017-00270 2.7 8.1 12° 4 45 5,000
08-00017-00280 2.8 8.4 12° 4 45 5,000
08-00017-00290 2.9 8.7 12° 4 45 5,000
08-00017-00300 3 9 12° 6 45 3,400
08-00017-00350 3.5 10.5 12° 6 45 4,800
08-00017-00400 4 12 12° 6 50 3,600
08-00017-00450 4.5 13.5 12° 6 50 5,000
08-00017-00500 5 15 12° 6 55 3,800
08-00017-00550 5.5 16.5 12° 6 60 5,000
08-00017-00600 6 18 6 60 4,000
