NTEM-2XDiscontinued

X COATING 2-Flute Medium Taper End Mill

●Semi-standard item，please inquire for price and delivery．

  • Coating
    X COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 50HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Applications
    Side Milling

  • Applications
    Slot Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

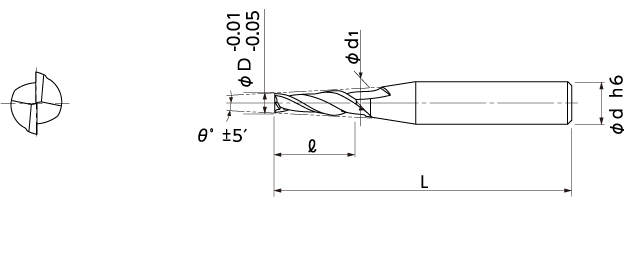

No.		 (D)Dia. (θ)Taper Angle (l)Length of Cut (d1)Dia. at Large End (d)Shank Dia. (L)Overall Length Semi-standard
▲ 01-00336-00502 0.5 30′ 4 0.57 3 35 ■
▲ 01-00336-00504 0.5 1° 4 0.64 3 35 ■
▲ 01-00336-00505 0.5 1°30′ 4 0.71 3 35 ■
▲ 01-00336-00506 0.5 2° 4 0.78 3 35 ■
▲ 01-00336-00508 0.5 3° 4 0.92 3 35 ■
▲ 01-00336-00510 0.5 4° 4 1.06 3 35 ■
▲ 01-00336-00512 0.5 5° 4 1.2 3 35 ■
▲ 01-00336-00802 0.8 30′ 5 0.89 3 35 ■
▲ 01-00336-00804 0.8 1° 5 0.97 3 35 ■
▲ 01-00336-00805 0.8 1°30′ 5 1.06 3 35 ■
▲ 01-00336-00806 0.8 2° 5 1.15 3 35 ■
▲ 01-00336-00808 0.8 3° 5 1.32 3 35 ■
▲ 01-00336-00810 0.8 4° 5 1.5 3 35 ■
▲ 01-00336-00812 0.8 5° 5 1.67 3 35 ■
▲ 01-00336-01002 1 30′ 6 1.1 4 45 ■
▲ 01-00336-01004 1 1° 6 1.21 4 45 ■
▲ 01-00336-01005 1 1°30′ 6 1.31 4 45 ■
▲ 01-00336-01006 1 2° 6 1.42 4 45 ■
▲ 01-00336-01008 1 3° 6 1.63 4 45 ■
▲ 01-00336-01010 1 4° 6 1.84 4 45 ■
▲ 01-00336-01012 1 5° 6 2.05 4 45 ■
▲ 01-00336-01016 1 7° 6 2.47 4 45 ■
▲ 01-00336-01019 1 10° 6 3.12 4 45 ■
▲ 01-00336-01024 1 15° 6 4.22 6 45 ■
▲ 01-00336-01502 1.5 30′ 8 1.64 4 45 ■
▲ 01-00336-01504 1.5 1° 8 1.78 4 45 ■
▲ 01-00336-01505 1.5 1°30′ 8 1.92 4 45 ■
▲ 01-00336-01506 1.5 2° 8 2.06 4 45 ■
▲ 01-00336-01508 1.5 3° 8 2.34 4 45 ■
▲ 01-00336-01510 1.5 4° 8 2.62 4 45 ■
▲ 01-00336-01512 1.5 5° 8 2.9 4 45 ■
▲ 01-00336-01516 1.5 7° 8 3.46 4 45 ■
▲ 01-00336-01519 1.5 10° 8 4.32 6 45 ■
▲ 01-00336-01524 1.5 15° 8 5.79 6 45 ■
▲ 01-00336-02002 2 30′ 10 2.17 4 50 ■
▲ 01-00336-02004 2 1° 10 2.35 4 50 ■
▲ 01-00336-02005 2 1°30′ 10 2.52 4 50 ■
▲ 01-00336-02006 2 2° 10 2.7 4 50 ■
▲ 01-00336-02008 2 3° 10 3.05 4 50 ■
▲ 01-00336-02010 2 4° 10 3.4 4 50 ■
▲ 01-00336-02012 2 5° 10 3.75 4 50 ■
▲ 01-00336-02016 2 7° 10 4.46 6 50 ■
▲ 01-00336-02019 2 10° 10 5.53 6 50 ■
▲ 01-00336-02024 2 15° 10 7.36 6 55 ■
▲ 01-00336-02502 2.5 30′ 12 2.71 4 50 ■
▲ 01-00336-02504 2.5 1° 12 2.92 4 50 ■
▲ 01-00336-02505 2.5 1°30′ 12 3.13 4 50 ■
▲ 01-00336-02506 2.5 2° 12 3.34 4 50 ■
▲ 01-00336-02508 2.5 3° 12 3.76 4 50 ■
▲ 01-00336-02510 2.5 4° 12 4.18 6 50 ■
▲ 01-00336-02512 2.5 5° 12 4.6 6 50 ■
▲ 01-00336-02516 2.5 7° 12 5.45 6 50 ■
▲ 01-00336-02519 2.5 10° 12 6.73 8 60 ■
▲ 01-00336-02524 2.5 15° 12 8.93 8 60 ■
▲ 01-00336-03002 3 30′ 15 3.26 6 55 ■
▲ 01-00336-03004 3 1° 15 3.52 6 55 ■
▲ 01-00336-03005 3 1°30′ 15 3.79 6 55 ■
▲ 01-00336-03006 3 2° 15 4.05 6 55 ■
▲ 01-00336-03008 3 3° 15 4.57 6 55 ■
▲ 01-00336-03010 3 4° 15 5.1 6 55 ■
▲ 01-00336-03012 3 5° 15 5.62 6 55 ■
▲ 01-00336-03016 3 7° 15 6.68 6 55 ■
▲ 01-00336-03019 3 10° 15 8.29 8 60 ■
▲ 01-00336-03024 3 15° 15 11.04 10 65 ■
▲ 01-00336-04002 4 30′ 20 4.35 6 55 ■
▲ 01-00336-04004 4 1° 20 4.7 6 55 ■
▲ 01-00336-04005 4 1°30′ 20 5.05 6 55 ■
▲ 01-00336-04006 4 2° 20 5.4 6 55 ■
▲ 01-00336-04008 4 3° 20 6.1 6 55 ■
▲ 01-00336-04010 4 4° 20 6.8 8 60 ■
▲ 01-00336-04012 4 5° 20 7.5 8 60 ■
▲ 01-00336-04016 4 7° 20 8.91 10 65 ■
▲ 01-00336-04019 4 10° 20 11.05 10 70 ■
▲ 01-00336-04024 4 15° 20 14.72 12 80 ■
▲ 01-00336-05002 5 30′ 25 5.44 6 65 ■
▲ 01-00336-05004 5 1° 25 5.87 6 65 ■
▲ 01-00336-05005 5 1°30′ 25 6.31 6 65 ■
▲ 01-00336-05006 5 2° 25 6.75 6 65 ■
▲ 01-00336-05008 5 3° 25 7.62 6 65 ■
▲ 01-00336-05010 5 4° 25 8.5 8 70 ■
▲ 01-00336-05012 5 5° 25 9.37 8 70 ■
▲ 01-00336-05016 5 7° 25 11.14 10 70 ■
▲ 01-00336-05019 5 10° 25 13.82 12 80 ■
▲ 01-00336-05024 5 15° 25 18.4 16 90 ■
▲ 01-00336-06002 6 30′ 30 6.52 8 70 ■
▲ 01-00336-06004 6 1° 30 7.05 8 70 ■
▲ 01-00336-06005 6 1°30′ 30 7.57 8 70 ■
▲ 01-00336-06006 6 2° 30 8.1 8 70 ■
▲ 01-00336-06008 6 3° 30 9.14 10 80 ■
▲ 01-00336-06010 6 4° 30 10.2 10 80 ■
▲ 01-00336-06012 6 5° 30 11.25 10 80 ■
▲ 01-00336-06016 6 7° 30 13.37 12 80 ■
▲ 01-00336-06019 6 10° 30 16.58 16 90 ■
▲ 01-00336-06024 6 15° 30 22.08 20 90 ■

▲ means the sizes will no longer be on sale after the stock runs out.

Substitute products

MUGEN COATING 2-Flute Taper End Mill

Standard type tapered end mill. Suitable for various shapes by wide range of size.

MTE230

MUGEN COATING 2-Flute Taper End Mill

View Details
