MTE230

MUGEN-COATING 2-Flute Taper End Mill

●MUGEN-COATING realizes long tool life at tapered cutting.
●Available from Dia.0.2mm to Dia.10mm and taper angle are from 30' to 20°(less than dia. 6).

  • Material
    Micro Grain Carbide

  • Helix Angle
    30°

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Coating
    MUGEN-COATING

  • Number of Flutes
    2 Flutes

  • Applications
    Side Milling

  • Applications
    Slot Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

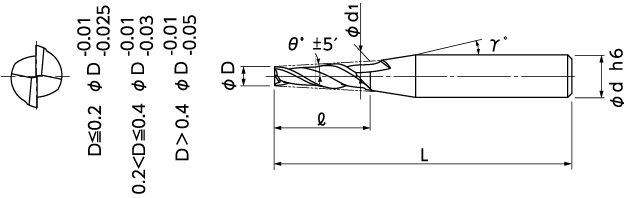

(D)Dia. (θ)Taper Angle (l)Length of Cut (d1)Dia. at Large End (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00300-00202 0.2 30′ 0.8 0.21 4 45 13,000
08-00300-00204 0.2 0.8 0.23 4 45 13,000
08-00300-00205 0.2 1°30′ 0.8 0.24 4 45 13,000
08-00300-00206 0.2 0.8 0.26 4 45 13,000
08-00300-00208 0.2 0.8 0.28 4 45 13,000
08-00300-00212 0.2 0.8 0.34 4 45 15,300
08-00300-00219 0.2 10° 0.8 0.48 10° 4 45 18,300
08-00300-00302 0.3 30′ 1.2 0.32 4 45 10,800
08-00300-00304 0.3 1.2 0.34 4 45 10,800
08-00300-00305 0.3 1°30′ 1.2 0.36 4 45 10,800
08-00300-00306 0.3 1.2 0.38 4 45 10,800
08-00300-00308 0.3 1.2 0.43 4 45 10,800
08-00300-00312 0.3 1.2 0.51 4 45 12,600
08-00300-00319 0.3 10° 1.2 0.72 10° 4 45 15,300
08-00300-00402 0.4 30′ 1.6 0.43 4 45 13,100
08-00300-00404 0.4 1.6 0.46 4 45 13,100
08-00300-00405 0.4 1°30′ 1.6 0.48 4 45 13,100
08-00300-00406 0.4 1.6 0.51 4 45 13,100
08-00300-00408 0.4 1.6 0.57 4 45 13,100
08-00300-00412 0.4 1.6 0.68 4 45 15,300
08-00300-00419 0.4 10° 1.6 0.96 10° 4 45 18,600
08-00300-00502 0.5 30′ 2 0.53 4 45 10,800
08-00300-00504 0.5 2 0.57 4 45 10,800
08-00300-00505 0.5 1°30′ 2 0.6 4 45 10,800
08-00300-00506 0.5 2 0.64 4 45 10,800
08-00300-00508 0.5 2 0.71 4 45 10,800
08-00300-00510 0.5 2 0.78 4 45 11,700
08-00300-00512 0.5 2 0.85 4 45 12,600
08-00300-00514 0.5 2 0.92 4 45 13,500
08-00300-00516 0.5 2 0.99 4 45 14,400
08-00300-00519 0.5 10° 2 1.21 10° 4 45 15,300
08-00300-00524 0.5 15° 2 1.57 15° 4 45 16,400
08-00300-00525 0.5 20° 2 1.96 15° 4 45 18,000
08-00300-00602 0.6 30′ 2 0.63 4 45 10,100
08-00300-00604 0.6 2 0.67 4 45 10,100
08-00300-00605 0.6 1°30′ 2 0.7 4 45 10,100
08-00300-00606 0.6 2 0.74 4 45 10,100
08-00300-00608 0.6 2 0.81 4 45 10,100
08-00300-00610 0.6 2 0.88 4 45 11,000
08-00300-00612 0.6 2 0.95 4 45 11,900
08-00300-00614 0.6 2 1.02 4 45 12,800
08-00300-00616 0.6 2 1.09 4 45 13,700
08-00300-00619 0.6 10° 2 1.31 10° 4 45 14,600
08-00300-00624 0.6 15° 2 1.67 15° 4 45 15,500
08-00300-00625 0.6 20° 2 2.06 15° 4 45 16,400
08-00300-00702 0.7 30′ 2 0.73 4 45 12,300
08-00300-00704 0.7 2 0.77 4 45 12,300
08-00300-00705 0.7 1°30′ 2 0.8 4 45 12,300
08-00300-00706 0.7 2 0.84 4 45 12,300
08-00300-00708 0.7 2 0.91 4 45 12,300
08-00300-00710 0.7 2 0.98 4 45 13,400
08-00300-00712 0.7 2 1.05 4 45 14,500
08-00300-00714 0.7 2 1.12 4 45 15,600
08-00300-00716 0.7 2 1.19 4 45 16,700
08-00300-00719 0.7 10° 2 1.41 10° 4 45 17,800
08-00300-00724 0.7 15° 2 1.77 15° 4 45 18,900
08-00300-00725 0.7 20° 2 2.16 15° 4 45 20,000
08-00300-00802 0.8 30′ 3 0.85 4 45 10,100
08-00300-00804 0.8 3 0.9 4 45 10,100
08-00300-00805 0.8 1°30′ 3 0.96 4 45 10,100
08-00300-00806 0.8 3 1.01 4 45 10,100
08-00300-00808 0.8 3 1.11 4 45 10,100
08-00300-00810 0.8 3 1.21 4 45 11,000
08-00300-00812 0.8 3 1.32 4 45 11,900
08-00300-00814 0.8 3 1.43 4 45 12,800
08-00300-00816 0.8 3 1.54 4 45 13,700
08-00300-00819 0.8 10° 3 1.86 10° 4 45 14,600
08-00300-00824 0.8 15° 3 2.41 15° 4 45 15,500
08-00300-00825 0.8 20° 3 2.98 20° 4 45 16,400
08-00300-00902 0.9 30′ 3 0.95 4 45 12,300
08-00300-00904 0.9 3 1 4 45 12,300
08-00300-00905 0.9 1°30′ 3 1.06 4 45 12,300
08-00300-00906 0.9 3 1.11 4 45 12,300
08-00300-00908 0.9 3 1.21 4 45 12,300
08-00300-00910 0.9 3 1.32 4 45 13,400
08-00300-00912 0.9 3 1.42 4 45 14,500
08-00300-00914 0.9 3 1.53 4 45 15,600
08-00300-00916 0.9 3 1.64 4 45 16,700
08-00300-00919 0.9 10° 3 1.96 10° 4 45 17,800
08-00300-00924 0.9 15° 3 2.51 15° 4 45 18,900
08-00300-00925 0.9 20° 3 3.08 20° 4 45 20,000
08-00300-01002 1 30′ 4 1.07 4 45 7,900
08-00300-01004 1 4 1.14 4 45 7,900
08-00300-01005 1 1°30′ 4 1.21 4 45 7,900
08-00300-01006 1 4 1.28 4 45 7,900
08-00300-01008 1 4 1.42 4 45 8,100
08-00300-01010 1 4 1.56 4 45 9,800
08-00300-01012 1 4 1.7 4 45 9,800
08-00300-01014 1 4 1.84 4 45 11,500
08-00300-01016 1 4 1.98 4 45 13,100
08-00300-01019 1 10° 4 2.41 10° 4 45 14,000
08-00300-01024 1 15° 4 3.14 15° 6 50 15,600
08-00300-01025 1 20° 4 3.91 15° 6 50 17,200
08-00300-01502 1.5 30′ 5 1.59 4 45 7,900
08-00300-01504 1.5 5 1.67 4 45 7,900
08-00300-01505 1.5 1°30′ 5 1.76 4 45 7,900
08-00300-01506 1.5 5 1.85 4 45 7,900
08-00300-01508 1.5 5 2.02 4 45 8,100
08-00300-01510 1.5 5 2.2 4 45 9,800
08-00300-01512 1.5 5 2.37 4 45 9,800
08-00300-01514 1.5 5 2.55 4 45 11,500
08-00300-01516 1.5 5 2.73 4 45 13,100
08-00300-01519 1.5 10° 5 3.26 10° 4 45 14,000
08-00300-01524 1.5 15° 5 4.18 15° 6 50 15,600
08-00300-01525 1.5 20° 5 5.14 20° 6 50 17,200
08-00300-02002 2 30′ 6 2.1 4 45 7,900
08-00300-02004 2 6 2.21 4 45 7,900
08-00300-02005 2 1°30′ 6 2.31 4 45 7,900
08-00300-02006 2 6 2.41 4 45 7,900
08-00300-02008 2 6 2.62 4 45 8,100
08-00300-02010 2 6 2.84 4 45 8,400
08-00300-02012 2 6 3.05 4 45 9,800
08-00300-02014 2 6 3.26 4 45 11,500
08-00300-02016 2 6 3.47 4 45 13,100
08-00300-02019 2 10° 6 4.11 10° 6 50 15,600
08-00300-02024 2 15° 6 5.22 15° 6 50 17,200
08-00300-02025 2 20° 6 6.37 6 50 20,800
08-00300-02502 2.5 30′ 8 2.64 4 45 9,600
08-00300-02504 2.5 8 2.78 4 45 9,600
08-00300-02505 2.5 1°30′ 8 2.91 4 45 9,600
08-00300-02506 2.5 8 3.05 4 45 9,600
08-00300-02508 2.5 8 3.33 4 45 9,900
08-00300-02510 2.5 8 3.62 4 45 10,200
08-00300-02512 2.5 8 3.9 4 45 11,900
08-00300-02514 2.5 8 4.18 4 50 12,000
08-00300-02516 2.5 8 4.46 4 50 14,000
08-00300-02519 2.5 10° 8 5.32 10° 6 50 21,000
08-00300-02524 2.5 15° 8 6.79 6 50 25,300
08-00300-02525 2.5 20° 8 8.32 8 60 29,700
08-00300-03002 3 30′ 10 3.17 6 50 8,300
08-00300-03004 3 10 3.35 6 50 8,300
08-00300-03005 3 1°30′ 10 3.52 6 50 8,300
08-00300-03006 3 10 3.69 6 50 8,300
08-00300-03008 3 10 4.05 6 50 8,500
08-00300-03010 3 10 4.4 6 50 8,700
08-00300-03012 3 10 4.75 6 50 9,300
08-00300-03014 3 10 5.1 6 50 12,300
08-00300-03016 3 10 5.46 6 50 16,400
08-00300-03019 3 10° 10 6.53 6 50 20,800
08-00300-03024 3 15° 10 8.36 8 60 24,400
08-00300-03025 3 20° 10 10.3 10 70 27,100
08-00300-04002 4 30′ 15 4.26 6 50 8,600
08-00300-04004 4 15 4.52 6 50 8,600
08-00300-04005 4 1°30′ 15 4.79 6 50 8,600
08-00300-04006 4 15 5.04 6 50 8,600
08-00300-04008 4 15 5.57 6 50 9,000
08-00300-04010 4 15 6.1 6 55 11,400
08-00300-04012 4 15 6.62 6 55 12,500
08-00300-04014 4 15 7.15 6 55 14,500
08-00300-04016 4 15 7.68 6 55 18,100
08-00300-04019 4 10° 15 9.29 8 60 24,400
08-00300-04024 4 15° 15 12.04 12 80 33,000
08-00300-04025 4 20° 15 14.92 12 80 38,500
08-00300-05002 5 30′ 20 5.34 6 55 12,000
08-00300-05004 5 20 5.7 6 55 12,000
08-00300-05005 5 1°30′ 20 6.04 6 55 14,300
08-00300-05006 5 20 6.39 6 55 14,300
08-00300-05008 5 20 7.1 6 55 14,900
08-00300-05010 5 20 7.8 6 60 16,500
08-00300-05012 5 20 8.5 8 60 22,000
08-00300-05014 5 20 9.2 8 60 25,300
08-00300-05016 5 20 9.91 10 70 27,500
08-00300-05019 5 10° 20 12.05 12 80 33,000
08-00300-05024 5 15° 20 15.72 15° 16 90 44,000
08-00300-05025 5 20° 20 19.56 20° 20 100 49,500
08-00300-06002 6 30′ 20 6.35 6 55 16,000
08-00300-06004 6 20 6.7 6 55 16,000
08-00300-06005 6 1°30′ 20 7.05 6 55 17,100
08-00300-06006 6 20 7.4 6 55 17,100
08-00300-06008 6 20 8.1 8 60 17,600
08-00300-06010 6 20 8.8 8 65 19,300
08-00300-06012 6 20 9.5 8 65 23,100
08-00300-06014 6 20 10.2 10 70 27,500
08-00300-06016 6 20 10.91 10 70 30,800
08-00300-06019 6 10° 20 13.05 12 80 35,200
08-00300-06024 6 15° 20 16.72 16 90 46,200
08-00300-06025 6 20° 20 20.56 20 100 51,700
08-00300-08002 8 30′ 25 8.44 8 65 20,900
08-00300-08004 8 25 8.87 8 65 20,900
08-00300-08005 8 1°30′ 25 9.31 8 65 22,600
08-00300-08006 8 25 9.74 8 65 23,700
08-00300-08008 8 25 10.62 10 70 27,500
08-00300-08012 8 25 12.37 12 90 44,000
08-00300-10002 10 30′ 35 10.61 10 85 33,000
08-00300-10004 10 35 11.22 10 85 33,000
08-00300-10005 10 1°30′ 35 11.83 10 85 36,300
08-00300-10006 10 35 12.44 12 90 40,700
08-00300-10008 10 35 13.67 12 90 48,400
08-00300-10012 10 35 16.12 16 90 55,000
