NSMD-S

Micro Drill Short

●L/D=6 short type,realized stable drilling.
●Thinning on the cutting edge to reduce cutting forces for accurate drilling. (Dia. 0.02~)

  • Material
    Super Micro Grain Carbide

  • Helix Angle
    30°

  • Number of Flutes
    2 Flutes

  • Applications
    Drilling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

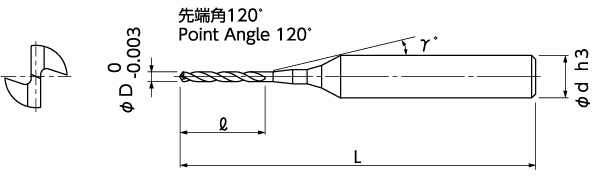

(D)Dia. (l)Flute Length (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
04-00005-00100 0.01 0.06 15° 4 40 45,000
04-00005-00150 0.015 0.09 15° 4 40 45,000
04-00005-00200 0.02 0.12 15° 4 40 36,000
04-00005-00250 0.025 0.15 15° 4 40 36,000
04-00005-00300 0.03 0.18 15° 4 40 21,000
04-00005-00400 0.04 0.24 15° 4 40 14,200
04-00005-00500 0.05 0.3 15° 4 40 12,000
