MRBSH230SF Released in August, 2020
MRBSH230SF
Size: R0.05~R3, total 83 sizes
New product

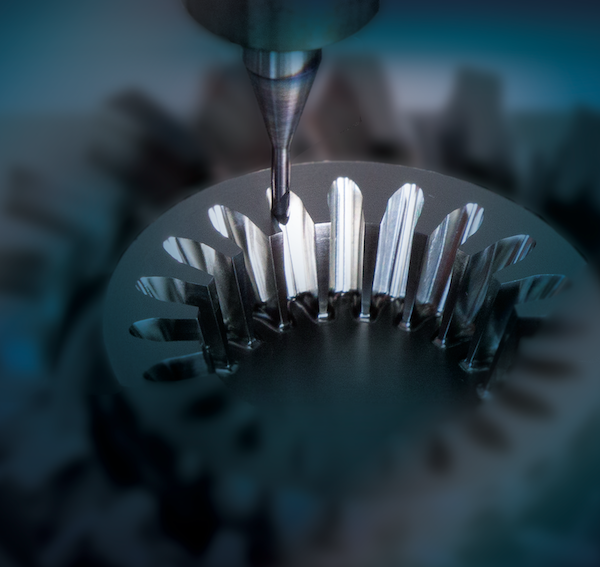

Realized 2-flute long neck ball end mill with short shank for long time and high precision machining on hardened steel up to 70HRC. Developed new 「MUGEN COATING PREMIUM Plus」to realize long time machining on high hard steel that over 60HRC. Additionally, when grinding, polished edge profile seamless, upgrade R accuracy to ±0.003mm realizes high precision machining.
Feature
1. New coating MUGEN COATING PREMIUM Plus with high Oxidation resistance and abrasion resistance.
2. Adopting cutting edge shape with reduced cutting load.
3. Non-step grinding between peripheral cutting edge and R helped R accuracy realizes high precision within ±0.003mm.
* R accuracy is based on 1/2 of actual blade diameter
Item
MUGEN COATING PREMIUM Plus

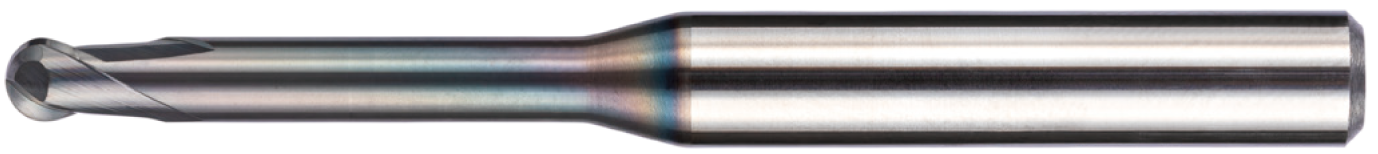

2-Flute Long Neck Ball End Mill with Short Shank for Hardened Steel and High accuracy cutting
MRBSH230SF
Specification
Material | ・・・ | Super Micro Grain Carbide |
Flute | ・・・ | 2 |
Helix angle | ・・・ | 30° |

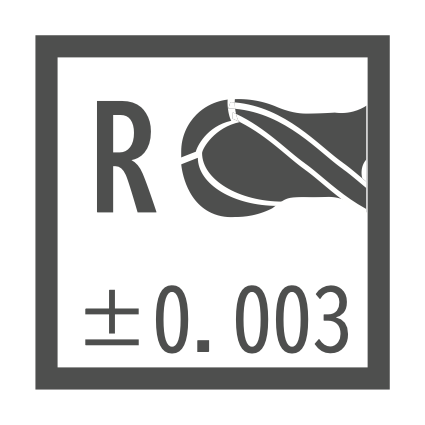

Corner R tolerance | ・・・ | ±0.003㎜ |

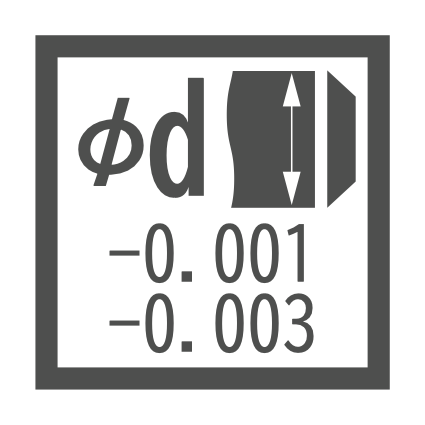

Shank Dia. | ・・・ | -0.001 ~ -0.003㎜ |
Lineup
R0.05 ~ R3 Total 83 sizes
Material
Specialized for High hard materials(45 ~ 70HRC)
Released
August 3rd, 2020.
