MSBSH330-5X　Released in June, 2021

NS TOOL first end mill series for 5-axis machine machining

3-flute high rigidity ball design conforms the features of a 5-axis machine to reduce the total manufacturing cost.

Specification

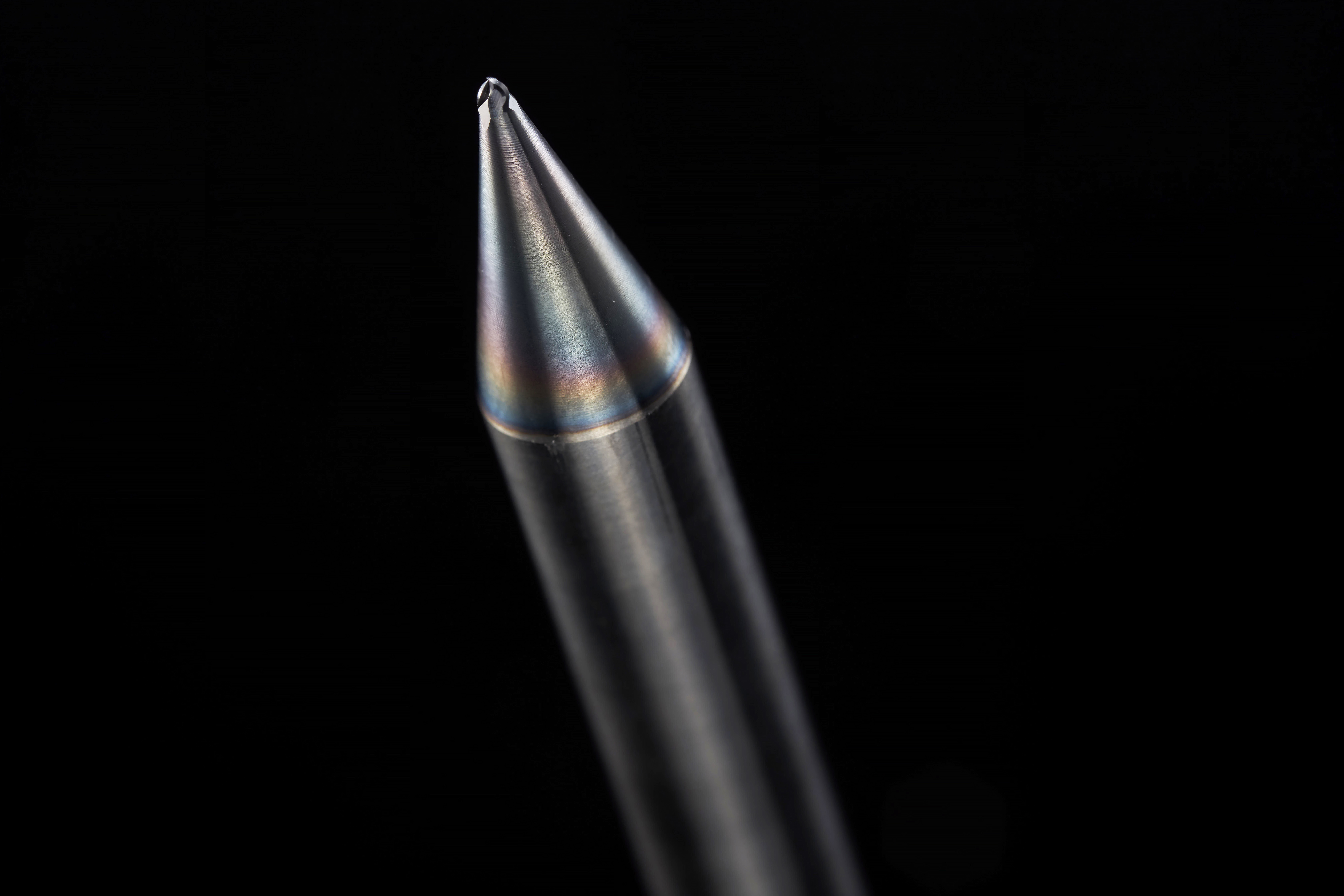

MUGEN COATING PREMIUM Plus 3-Flute Ball End Mill for 5-axis Machining【MSBSH330-5X】

Shape： 3-flute ball end mill

Coating： MUGEN COATING PREMIUM Plus

Material： Super Micro Grain Carbide

Size： R0.1～R1 ( Total 8 sizes )

Features：・3-flute high rigidity ball design conforms the features of a 5-axis machine
                  to reduce the total manufacturing cost.
　　　      ・ Even hardened steel of 45 to 70HRC can be machining with long tool life
                  and high efficiency.
　　　      ・By adopting positive cutting edge for carbide material emphasized breakage
                  resistance that suppresses chattering by 3-flute and unequal flute.
　　　      ・R accuracy is ±0.005mm (R accuracy is based on a half value of actual diameter).
               ・Shank diameter tolerance , high accuracy type, is - 0.001 〜 - 0.003.

Details

For the product details, please Click

For details of size list, please Click

Leaflet

Click for PDF Leaflet
