MUGEN COATING PREMIUM Plus

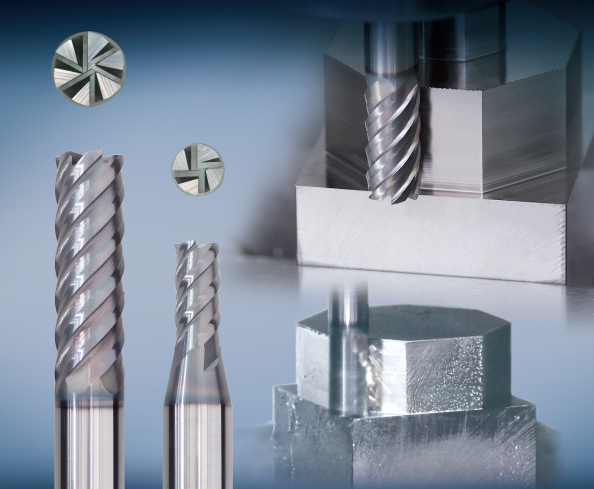

4-Flute/6-Flute Square End Mill for Hardened Steel

High rigidity tool design suppresses deflection and realizes long tool life on machining 70HRC hardened steel

Specification

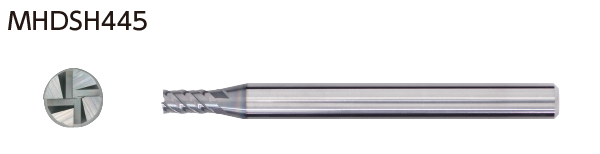

MHDSH445
Shape：4-Flute Square End Mill
Coating：MUGEN COATING PREMIUM Plus
Material：Super Micro Grain Carbide
Size：Φ 1 ～ Φ 4（Total 10 sizes）

Feature：・4-flute is lineup of length of cut expands 2D and 3D.
・MUGEN COATING PREMIUM Plus realizes long tool life even for hardened steel up to 70HRC.
・High rigidity tool design improves machining accuracy.

For the product details, please Click
For details of size list, please Click

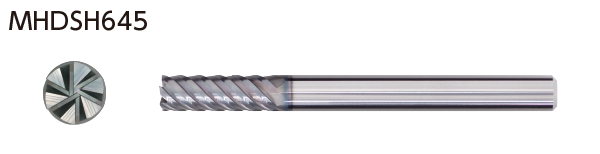

MHDSH645
Shape：6-Flute Square End Mill
Coating：MUGEN COATING PREMIUM Plus
Material：Super Micro Grain Carbide
Size：Φ 5 ～ Φ 6（Total 4 sizes）

Feature：・6-flute is lineup of length of cut expands 2D and 3D.
・MUGEN COATING PREMIUM Plus realizes long tool life even for hardened steel up to 70HRC.
・High rigidity tool design improves machining accuracy.

For the product details, please Click
For details of size list, please Click

Leaflet

Click for PDF leaflet
