MSE230MDiscontinued

MUGEN COATING 2-Flute End Mill with Measured Diameter

●Printed actual measurement of diameter in micron．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

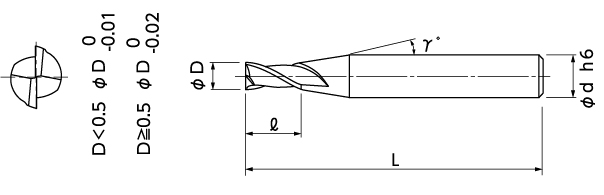

No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
▲ 08-00105-00010 0.1 0.15 9° 4 45
▲ 08-00105-00020 0.2 0.4 9° 4 45
▲ 08-00105-00030 0.3 0.6 9° 4 45
▲ 08-00105-00040 0.4 0.8 9° 4 45
▲ 08-00105-00050 0.5 1.25 9° 4 45
▲ 08-00105-00080 0.8 2 9° 4 45
▲ 08-00105-00100 1 2.5 9° 4 45
▲ 08-00105-00150 1.5 4 9° 4 45
▲ 08-00105-00200 2 5 9° 4 45
▲ 08-00105-00250 2.5 7 9° 4 45
▲ 08-00105-00300 3 8 9° 6 50
▲ 08-00105-00400 4 10 9° 6 50
▲ 08-00105-00500 5 13 9° 6 55
▲ 08-00105-00600 6 15 － 6 55

▲ means the sizes will no longer be on sale after the stock runs out.

Substitute products

MUGEN COATING 2-Flute LEAD30 End Mill

For various work materials. L/D=2. Applicable to both slotting and side milling.

MX230

MUGEN COATING 2-Flute LEAD30 End Mill

View Details
