MSBXL230

MUGEN COATING 2-Flute Extra Long Ball End Mill

●Semi-standard item，please inquire for price and delivery．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

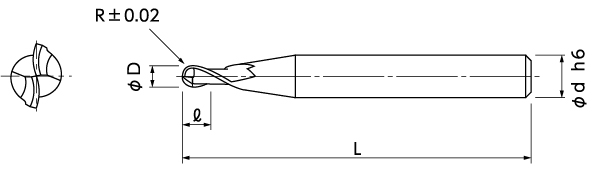

Unit [size: mm]

Code
No.		 (R)Radius (l)Length of Cut (D)Dia. (d)Shank Dia. (L)Overall Length
08-00511-00050 R0.5 2.5 1 3 100
08-00511-00100 R1 5 2 3 100
08-00511-00150 R1.5 7.5 3 3 120
08-00511-00200 R2 10 4 4 150
08-00511-00250 R2.5 12.5 5 6 180
08-00511-00300 R3 15 6 6 180
08-00511-00400 R4 20 8 8 200
08-00511-00500 R5 25 10 10 250
