MSBL230

MUGEN-COATING 2-Flute Long Ball End Mill

●Our original MUGEN-COATING has been put on 2-flute long ball end mill．
●The available sizes are from radius 0．1 to 5．
●Take advantage of long shank feature．
●【■】：Semi-Standerd item，please inquire for price and delivery．

  • Material
    Micro Grain Carbide

  • Helix Angle
    30°

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Coating
    MUGEN-COATING

  • Number of Flutes
    2 Flutes

  • Applications
    3D Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide
〜
55HRC		 55HRC
〜
Carbon Steels Titanium
Alloy Steels
/ Tool Steels		 Aluminum
Prehardened
Steels		 Copper
Hardened
Steels		 〜
55HRC		 Plastic
55HRC
〜		 Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code

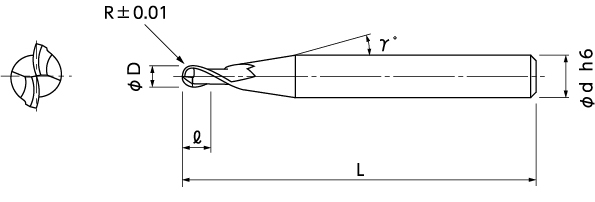

No.		 (R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price		 Quantity Semi-standard
08-00510-00010 R0.1 0.5 0.2 9° 3 70 15,700 ■
08-00510-00015 R0.15 0.75 0.3 9° 3 70 15,700 ■
08-00510-00020 R0.2 1 0.4 9° 3 70 15,700 ■
08-00510-00025 R0.25 1.25 0.5 9° 3 70 15,700 ■
08-00510-00030 R0.3 1.5 0.6 9° 3 70 13,900 ■
08-00510-00035 R0.35 1.75 0.7 9° 3 70 13,900 ■
08-00510-00040 R0.4 2 0.8 9° 3 70 13,900 ■
08-00510-00045 R0.45 2.25 0.9 9° 3 70 13,900 ■
08-00510-00050 R0.5 2.5 1 9° 3 70 11,000
08-00510-00055 R0.55 2.75 1.1 9° 3 70 13,900 ■
08-00510-00060 R0.6 3 1.2 9° 3 70 13,900 ■
08-00510-00065 R0.65 3.25 1.3 9° 3 70 13,900 ■
08-00510-00070 R0.7 3.5 1.4 9° 3 70 13,900 ■
08-00510-00075 R0.75 3.75 1.5 9° 3 70 13,900 ■
08-00510-00080 R0.8 4 1.6 9° 3 70 13,900 ■
08-00510-00085 R0.85 4.25 1.7 9° 3 70 13,900 ■
08-00510-00090 R0.9 4.5 1.8 9° 3 70 13,900 ■
08-00510-00095 R0.95 4.75 1.9 9° 3 70 13,900 ■
08-00510-00100 R1 5 2 9° 3 70 12,000
08-00510-00110 R1.1 5.5 2.2 9° 3 80 14,800 ■
08-00510-00120 R1.2 6 2.4 9° 3 80 14,800 ■
08-00510-00125 R1.25 6.25 2.5 9° 3 80 14,800 ■
08-00510-00130 R1.3 6.5 2.6 9° 3 80 14,800 ■
08-00510-00140 R1.4 7 2.8 9° 3 80 14,800 ■
08-00510-00150 R1.5 7.5 3 － 3 80 13,000
08-00510-00160 R1.6 8 3.2 － 3 120 14,900 ■
08-00510-00170 R1.7 8.5 3.4 － 3 120 14,900 ■
08-00510-00180 R1.8 9 3.6 9° 4 120 16,700 ■
08-00510-00190 R1.9 9.5 3.8 9° 4 120 16,700 ■
08-00510-00200 R2 10 4 － 4 120 13,000
08-00510-00210 R2.1 10.5 4.2 － 4 150 18,400 ■
08-00510-00220 R2.2 11 4.4 － 4 150 18,400 ■
08-00510-00230 R2.3 11.5 4.6 9° 6 150 22,400 ■
08-00510-00240 R2.4 12 4.8 9° 6 150 22,400 ■
08-00510-00250 R2.5 12.5 5 9° 6 150 22,400 ■
08-00510-00260 R2.6 13 5.2 9° 6 150 22,400 ■
08-00510-00270 R2.7 13.5 5.4 9° 6 150 22,400 ■
08-00510-00280 R2.8 14 5.6 9° 6 150 22,400 ■
08-00510-00290 R2.9 14.5 5.8 9° 6 150 22,400 ■
08-00510-00300 R3 15 6 － 6 150 18,000
08-00510-00400 R4 20 8 － 8 160 29,100
08-00510-00500 R5 25 10 － 10 200 34,800
