MSBH345

MUGEN-COATING PREMIUM 3-Flute Ball End Mill for Hardened Steel

●MUGEN-COATING PREMIUM realizes long tool life for machining on high-hardened steel.
●Original 3-flute design and unequal flute spacing to suppress chattering realize high efficient machining.
●【■】:Semi-Standerd item,please inquire for price and delivery.

  • Material
    Micro Grain Carbide

  • Helix Angle
    45°

  • Cutting Possibility of Work Material Hardness
    Up to 68HRC

  • Coating
    MUGEN-COATING PREMIUM

  • Number of Flutes
    3 Flutes

  • Applications
    3D Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

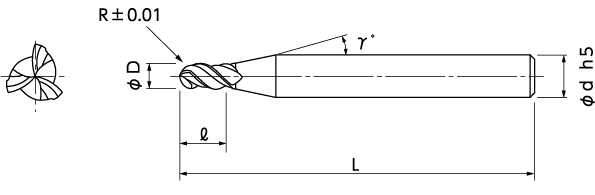

(R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00607-00050 R0.5 1.5 1 12° 6 60 9,200
08-00607-00060 R0.6 2 1.2 12° 6 60 12,400
08-00607-00070 R0.7 3 1.4 12° 6 60 12,400
08-00607-00080 R0.8 3 1.6 12° 6 60 12,400
08-00607-00090 R0.9 3 1.8 12° 6 60 12,400
08-00607-00100 R1 3 2 12° 6 60 9,200
08-00607-00110 R1.1 3.5 2.2 12° 6 60 13,500
08-00607-00120 R1.2 4 2.4 12° 6 60 13,500
08-00607-00130 R1.3 4 2.6 12° 6 60 13,500
08-00607-00140 R1.4 5 2.8 12° 6 60 13,500
08-00607-00150 R1.5 5 3 12° 6 60 10,000
08-00607-00160 R1.6 5 3.2 12° 6 60 13,500
08-00607-00170 R1.7 6 3.4 12° 6 60 13,500
08-00607-00180 R1.8 6 3.6 12° 6 60 13,500
08-00607-00190 R1.9 6 3.8 12° 6 60 13,500
08-00607-00200 R2 6 4 12° 6 70 10,000
08-00607-00210 R2.1 7 4.2 12° 6 70 14,600
08-00607-00220 R2.2 7 4.4 12° 6 70 14,600
08-00607-00230 R2.3 7 4.6 12° 6 70 14,600
08-00607-00240 R2.4 8 4.8 12° 6 70 14,600
08-00607-00250 R2.5 8 5 12° 6 70 10,800
08-00607-00260 R2.6 8 5.2 12° 6 70 15,700
08-00607-00270 R2.7 9 5.4 12° 6 70 15,700
08-00607-00280 R2.8 9 5.6 12° 6 70 15,700
08-00607-00290 R2.9 9 5.8 12° 6 70 15,700
08-00607-00300 R3 10 6 6 80 11,600
