MSB345

MUGEN COATING 3-Flute Ball End Mill

●Original 3-flute design and unequal flute spacing to suppress chattering realize high efficient machining.

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    3 Flutes

  • Helix Angle
    45°

  • φd h5

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
~
52HRC
~
60HRC
~
65HRC
~
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel
~
52HRC
Resin
~
60HRC
Graphite
~
65HRC
Hard Brittle
Material
~
70HRC
Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code
No.

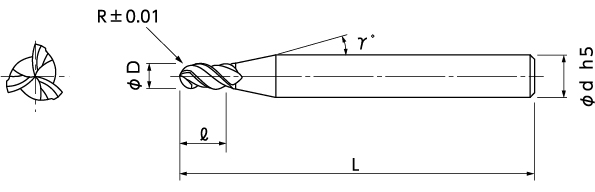

(R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00600-00050 R0.5 1.5 1 12° 6 60
08-00600-00060 R0.6 2 1.2 12° 6 60 ■
08-00600-00070 R0.7 3 1.4 12° 6 60 ■
08-00600-00080 R0.8 3 1.6 12° 6 60 ■
08-00600-00090 R0.9 3 1.8 12° 6 60 ■
08-00600-00100 R1 3 2 12° 6 60
08-00600-00110 R1.1 3.5 2.2 12° 6 60 ■
08-00600-00120 R1.2 4 2.4 12° 6 60 ■
08-00600-00130 R1.3 4 2.6 12° 6 60 ■
08-00600-00140 R1.4 5 2.8 12° 6 60 ■
08-00600-00150 R1.5 5 3 12° 6 60
08-00600-00160 R1.6 5 3.2 12° 6 60 ■
08-00600-00170 R1.7 6 3.4 12° 6 60 ■
08-00600-00180 R1.8 6 3.6 12° 6 60 ■
08-00600-00190 R1.9 6 3.8 12° 6 60 ■
08-00600-00200 R2 6 4 12° 6 70
08-00600-00210 R2.1 7 4.2 12° 6 70 ■
08-00600-00220 R2.2 7 4.4 12° 6 70 ■
08-00600-00230 R2.3 7 4.6 12° 6 70 ■
08-00600-00240 R2.4 8 4.8 12° 6 70 ■
08-00600-00250 R2.5 8 5 12° 6 70
08-00600-00260 R2.6 8 5.2 12° 6 70 ■
08-00600-00270 R2.7 9 5.4 12° 6 70 ■
08-00600-00280 R2.8 9 5.6 12° 6 70 ■
08-00600-00290 R2.9 9 5.8 12° 6 70 ■
08-00600-00300 R3 10 6 - 6 80
08-00600-00310 R3.1 10 6.2 12° 8 90 ■
08-00600-00320 R3.2 10 6.4 12° 8 90 ■
08-00600-00330 R3.3 10 6.6 12° 8 90 ■
08-00600-00340 R3.4 11 6.8 12° 8 90 ■
08-00600-00350 R3.5 11 7 12° 8 90 ■
08-00600-00360 R3.6 11 7.2 12° 8 90 ■
08-00600-00370 R3.7 12 7.4 12° 8 90 ■
08-00600-00380 R3.8 12 7.6 12° 8 90 ■
08-00600-00390 R3.9 12 7.8 12° 8 90 ■
08-00600-00400 R4 12 8 - 8 90
08-00600-00410 R4.1 13 8.2 12° 10 100 ■
08-00600-00420 R4.2 13 8.4 12° 10 100 ■
08-00600-00430 R4.3 13 8.6 12° 10 100 ■
08-00600-00440 R4.4 14 8.8 12° 10 100 ■
08-00600-00450 R4.5 14 9 12° 10 100 ■
08-00600-00460 R4.6 14 9.2 12° 10 100 ■
08-00600-00470 R4.7 15 9.4 12° 10 100 ■
08-00600-00480 R4.8 15 9.6 12° 10 100 ■
08-00600-00490 R4.9 15 9.8 12° 10 100 ■
08-00600-00500 R5 15 10 - 10 100
08-00600-00510 R5.1 16 10.2 12° 12 110 ■
08-00600-00520 R5.2 16 10.4 12° 12 110 ■
08-00600-00530 R5.3 16 10.6 12° 12 110 ■
08-00600-00540 R5.4 17 10.8 12° 12 110 ■
08-00600-00550 R5.5 17 11 12° 12 110 ■
08-00600-00560 R5.6 17 11.2 12° 12 110 ■
08-00600-00570 R5.7 18 11.4 12° 12 110 ■
08-00600-00580 R5.8 18 11.6 12° 12 110 ■
08-00600-00590 R5.9 18 11.8 12° 12 110 ■
08-00600-00600 R6 20 12 - 12 110
