MSB230SF

MUGEN COATING 2-Flute Ball End Mill with Short Shank

●It fits for Shrink Chuck System.

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Conner
    ±0.005(R≦1)

  • φd h5(R≦3)

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel

55HRC

65HRC

70HRC
Carbon Steel Alloy Steel
Prehardened
Steel
Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel

55HRC

65HRC

70HRC

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

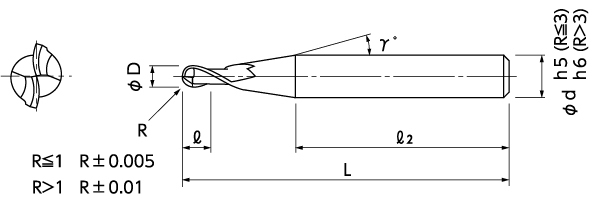

(R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (l2)Shank Length (L)Overall Length Retail
Price
08-00504-00010 R0.1 0.2 0.2 15° 4 27.3 35 8,100
08-00504-00020 R0.2 0.4 0.4 15° 4 27.2 35 4,500
08-00504-00030 R0.3 0.6 0.6 15° 4 27.3 35 4,000
08-00504-00040 R0.4 0.8 0.8 15° 4 27.4 35 4,000
08-00504-00050 R0.5 1 1 15° 4 32.5 40 3,700
08-00504-00060 R0.6 1.2 1.2 15° 4 32.5 40 4,500
08-00504-00075 R0.75 1.5 1.5 15° 4 32.6 40 4,500
08-00504-00100 R1 2 2 4 30.1 40 3,300
08-00504-00150 R1.5 3 3 4 31.8 40 4,000
08-00504-00200 R2 4 4 6 27.6 40 4,300
08-00504-00250 R2.5 5 5 6 39.8 50 5,200
08-00504-00300 R3 6 6 6 34.9 50 5,500
08-00504-00400 R4 8 8 8 41.1 60 9,200
08-00504-00500 R5 10 10 10 36.6 60 11,000
08-00504-00600 R6 12 12 12 33.6 60 15,100
