MSB230S

MUGEN COATING 2-Flute Short Flute Ball End Mill

●High rigid design reduced chatter in high speed cutting．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Conner
    ±0.005(R≦1)

  • φd h5(R≦3)

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

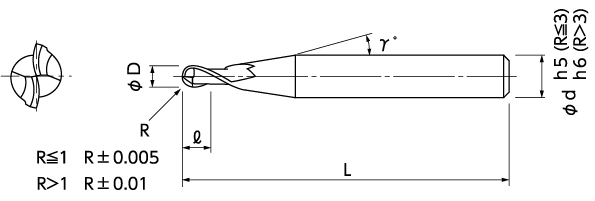

No.		 (R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00530-00010 R0.1 0.2 0.2 9° 4 50
08-00530-00015 R0.15 0.3 0.3 9° 4 50
08-00530-00020 R0.2 0.4 0.4 9° 4 50
08-00530-00025 R0.25 0.5 0.5 9° 4 50
08-00530-00030 R0.3 0.6 0.6 9° 4 50
08-00530-00035 R0.35 0.7 0.7 9° 4 50
08-00530-00040 R0.4 0.8 0.8 9° 4 50
08-00530-00045 R0.45 0.9 0.9 9° 4 50
08-00530-00050 R0.5 1 1 9° 4 50
08-00530-00060 R0.6 1.2 1.2 9° 4 50
08-00530-00070 R0.7 1.4 1.4 9° 4 50
08-00530-00075 R0.75 1.5 1.5 9° 4 50
08-00530-00080 R0.8 1.6 1.6 9° 4 50
08-00530-00090 R0.9 1.8 1.8 9° 4 50
08-00530-00100 R1 2 2 9° 4 60
08-00530-00125 R1.25 2.5 2.5 9° 4 60
08-00530-00150 R1.5 3 3 9° 4 60
08-00530-00175 R1.75 3.5 3.5 9° 4 60
08-00530-00200 R2 4 4 9° 6 60
08-00530-00250 R2.5 5 5 9° 6 70
08-00530-00300 R3 6 6 － 6 80
08-00530-00400 R4 8 8 － 8 90
08-00530-00500 R5 10 10 － 10 100
08-00530-00600 R6 12 12 － 12 110
