MSB230G2

MUGEN COATING Profit Ball End Mill

●Utmost accuracy ! R-tolerance：±0.002ｍm．
●Improved MUGEN COATING guarantees long-lasting machining．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Conner
    ±0.002

  • φd h5

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

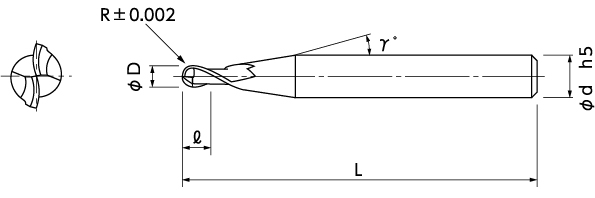

No.		 (R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00505-00005 R0.05 0.1 0.1 15° 4 50
08-00505-00010 R0.1 0.2 0.2 15° 4 50
08-00505-00015 R0.15 0.3 0.3 15° 4 50
08-00505-00020 R0.2 0.6 0.4 15° 4 50
08-00505-00025 R0.25 0.8 0.5 15° 4 50
08-00505-00030 R0.3 0.9 0.6 15° 4 50
08-00505-00040 R0.4 1.2 0.8 15° 4 50
08-00505-00050 R0.5 1.5 1 15° 4 50
08-00505-00075 R0.75 2.3 1.5 15° 4 50
08-00505-00100 R1 3 2 9° 4 60
08-00505-00150 R1.5 5 3 9° 6 60
08-00505-00200 R2 6 4 9° 6 70
08-00505-00250 R2.5 8 5 9° 6 70
08-00505-00300 R3 10 6 － 6 80
