MRBTN230L

MUGEN COATING 2-Flute Extra Long Taper Neck Ball End Mill

●Semi-standard item,please inquire for price and delivery.

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Conner
    ±0.005(R<0.25)

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel

55HRC

65HRC

70HRC
Carbon Steel Alloy Steel
Prehardened
Steel
Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel

55HRC

65HRC

70HRC

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

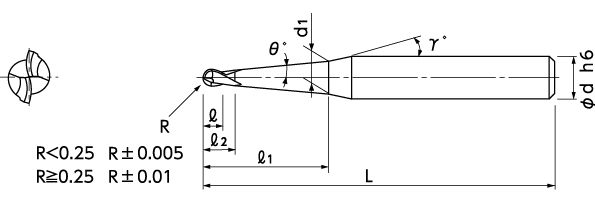

(R)Radius (θ)Neck Taper Angle (l1)Under Neck Length (d1)Neck Dia. (l)Length of Cut (l2)Under Neck Taper Length2 (γ)Neck Taper Angle2 (d)Shank Dia. (L)Overall Length Retail
Price
08-00580-01021 R0.1 30′ 2.5 0.24 0.2 0.4 12° 4 50 14,500
08-00580-01022 R0.1 30′ 3 0.25 0.2 0.4 12° 4 50 14,500
08-00580-01041 R0.1 2.5 0.27 0.2 0.4 12° 4 50 14,500
08-00580-01042 R0.1 3 0.29 0.2 0.4 12° 4 50 14,500
08-00580-01051 R0.1 1°30′ 2.5 0.31 0.2 0.4 12° 4 50 14,500
08-00580-01052 R0.1 1°30′ 3 0.34 0.2 0.4 12° 4 50 14,500
08-00580-01061 R0.1 2.5 0.35 0.2 0.4 12° 4 50 14,500
08-00580-01062 R0.1 3 0.38 0.2 0.4 12° 4 50 14,500
08-00580-01081 R0.1 2.5 0.42 0.2 0.4 12° 4 50 14,500
08-00580-01082 R0.1 3 0.47 0.2 0.4 12° 4 50 14,500
08-00580-01092 R0.1 3 0.65 0.2 0.4 12° 4 50 14,500
08-00580-01521 R0.15 30′ 4 0.36 0.3 0.5 12° 4 50 14,500
08-00580-01541 R0.15 4 0.42 0.3 0.5 12° 4 50 14,500
08-00580-01551 R0.15 1°30′ 4 0.48 0.3 0.5 12° 4 50 14,500
08-00580-01561 R0.15 4 0.54 0.3 0.5 12° 4 50 14,500
08-00580-01581 R0.15 4 0.67 0.3 0.5 12° 4 50 14,500
08-00580-01591 R0.15 4 0.91 0.3 0.5 12° 4 50 14,500
08-00580-02021 R0.2 30′ 5 0.47 0.4 0.8 12° 4 50 11,000
08-00580-02022 R0.2 30′ 6 0.49 0.4 0.8 12° 4 50 11,000
08-00580-02041 R0.2 5 0.55 0.4 0.8 12° 4 50 11,000
08-00580-02042 R0.2 6 0.58 0.4 0.8 12° 4 50 11,000
08-00580-02051 R0.2 1°30′ 5 0.62 0.4 0.8 12° 4 50 11,000
08-00580-02052 R0.2 1°30′ 6 0.67 0.4 0.8 12° 4 50 11,000
08-00580-02061 R0.2 5 0.69 0.4 0.8 12° 4 50 11,000
08-00580-02062 R0.2 6 0.76 0.4 0.8 12° 4 50 11,000
08-00580-02081 R0.2 5 0.84 0.4 0.8 12° 4 50 11,000
08-00580-02082 R0.2 6 0.95 0.4 0.8 12° 4 50 11,000
08-00580-02092 R0.2 6 1.31 0.4 0.8 12° 4 50 11,000
08-00580-02521 R0.25 30′ 6 0.59 0.5 1 12° 4 50 11,000
08-00580-02522 R0.25 30′ 7 0.6 0.5 1 12° 4 50 11,000
08-00580-02541 R0.25 6 0.67 0.5 1 12° 4 50 11,000
08-00580-02542 R0.25 7 0.71 0.5 1 12° 4 50 11,000
08-00580-02551 R0.25 1°30′ 6 0.76 0.5 1 12° 4 50 11,000
08-00580-02552 R0.25 1°30′ 7 0.81 0.5 1 12° 4 50 11,000
08-00580-02561 R0.25 6 0.85 0.5 1 12° 4 50 11,000
08-00580-02562 R0.25 7 0.92 0.5 1 12° 4 50 11,000
08-00580-02581 R0.25 6 1.02 0.5 1 12° 4 50 11,000
08-00580-02582 R0.25 7 1.13 0.5 1 12° 4 50 11,000
08-00580-02592 R0.25 7 1.55 0.5 1 12° 4 50 11,000
08-00580-03021 R0.3 30′ 10 0.75 0.6 1.2 12° 4 60 11,000
08-00580-03022 R0.3 30′ 12 0.79 0.6 1.2 12° 4 60 11,500
08-00580-03023 R0.3 30′ 20 0.93 0.6 1.2 12° 4 60 12,500
08-00580-03041 R0.3 10 0.91 0.6 1.2 12° 4 60 11,000
08-00580-03042 R0.3 12 0.98 0.6 1.2 12° 4 60 11,500
08-00580-03043 R0.3 20 1.26 0.6 1.2 12° 4 60 12,500
08-00580-03051 R0.3 1°30′ 10 1.06 0.6 1.2 12° 4 60 11,000
08-00580-03052 R0.3 1°30′ 12 1.17 0.6 1.2 12° 4 60 11,500
08-00580-03053 R0.3 1°30′ 20 1.58 0.6 1.2 12° 4 60 12,500
08-00580-03061 R0.3 10 1.21 0.6 1.2 12° 4 60 11,000
08-00580-03062 R0.3 12 1.35 0.6 1.2 12° 4 60 11,500
08-00580-03063 R0.3 20 1.91 0.6 1.2 12° 4 60 12,500
08-00580-03081 R0.3 10 1.52 0.6 1.2 12° 4 60 11,000
08-00580-03082 R0.3 12 1.73 0.6 1.2 12° 4 60 11,500
08-00580-03083 R0.3 20 2.57 0.6 1.2 12° 4 60 12,500
08-00580-03091 R0.3 10 2.14 0.6 1.2 12° 4 60 11,000
08-00580-03092 R0.3 12 2.49 0.6 1.2 12° 4 60 11,500
08-00580-03093 R0.3 20 4 0.6 1.2 4 60 12,500
08-00580-04021 R0.4 30′ 16 1.05 0.8 1.6 12° 4 60 11,500
08-00580-04022 R0.4 30′ 20 1.12 0.8 1.6 12° 4 60 12,000
08-00580-04041 R0.4 16 1.3 0.8 1.6 12° 4 60 11,500
08-00580-04042 R0.4 20 1.44 0.8 1.6 12° 4 60 12,000
08-00580-04051 R0.4 1°30′ 16 1.55 0.8 1.6 12° 4 60 11,500
08-00580-04052 R0.4 1°30′ 20 1.76 0.8 1.6 12° 4 60 12,000
08-00580-04061 R0.4 16 1.81 0.8 1.6 12° 4 60 11,500
08-00580-04062 R0.4 20 2.09 0.8 1.6 12° 4 60 12,000
08-00580-04081 R0.4 16 2.31 0.8 1.6 12° 4 60 11,500
08-00580-04082 R0.4 20 2.73 0.8 1.6 12° 4 60 12,000
08-00580-04092 R0.4 19.8 4 0.8 1.6 4 60 12,000
08-00580-05021 R0.5 30′ 30 1.49 1 2 12° 4 70 13,000
08-00580-05022 R0.5 30′ 50 1.84 1 2 12° 4 90 14,500
08-00580-05023 R0.5 30′ 80 2.36 1 2 12° 4 130 18,000
08-00580-05041 R0.5 30 1.98 1 2 12° 4 70 13,000
08-00580-05042 R0.5 50 2.68 1 2 12° 4 90 14,500
08-00580-05043 R0.5 80 3.72 1 2 12° 4 130 18,000
08-00580-05051 R0.5 1°30′ 30 2.47 1 2 12° 4 70 13,000
08-00580-05052 R0.5 1°30′ 50 3.51 1 2 12° 4 90 14,500
08-00580-05053 R0.5 1°30′ 80 5.09 1 2 12° 6 130 19,000
08-00580-05061 R0.5 30 2.96 1 2 12° 4 70 13,000
08-00580-05062 R0.5 50 4.35 1 2 12° 6 90 16,000
08-00580-05063 R0.5 73.5 6 1 2 6 130 19,000
08-00580-05081 R0.5 30.6 4 1 2 4 70 13,000
08-00580-05082 R0.5 49.7 6 1 2 6 90 16,000
08-00580-05083 R0.5 80 9.18 1 2 12° 10 130 34,300
08-00580-05091 R0.5 30.5 6 1 2 6 70 15,000
08-00580-05092 R0.5 53.4 10 1 2 10 90 26,800
08-00580-06021 R0.6 30′ 36 1.79 1.2 2.4 12° 4 80 14,000
08-00580-06022 R0.6 30′ 48 2 1.2 2.4 12° 4 90 15,000
08-00580-06041 R0.6 36 2.37 1.2 2.4 12° 4 80 14,000
08-00580-06042 R0.6 48 2.79 1.2 2.4 12° 4 90 15,000
08-00580-06051 R0.6 1°30′ 36 2.96 1.2 2.4 12° 4 80 14,000
08-00580-06052 R0.6 1°30′ 48 3.59 1.2 2.4 12° 4 90 15,000
08-00580-06061 R0.6 36 3.55 1.2 2.4 12° 4 80 14,000
08-00580-06062 R0.6 48 4.38 1.2 2.4 12° 6 90 16,000
08-00580-06081 R0.6 36 4.72 1.2 2.4 12° 6 80 15,000
08-00580-06082 R0.6 48 6 1.2 2.4 6 90 16,000
08-00580-06092 R0.6 41.2 8 1.2 2.4 8 90 20,900
08-00580-07521 R0.75 30′ 45 2.23 1.5 3 12° 4 90 15,000
08-00580-07522 R0.75 30′ 60 2.49 1.5 3 12° 4 110 16,000
08-00580-07541 R0.75 45 2.97 1.5 3 12° 4 90 15,000
08-00580-07542 R0.75 60 3.49 1.5 3 12° 4 110 16,000
08-00580-07551 R0.75 1°30′ 45 3.7 1.5 3 12° 4 90 15,000
08-00580-07552 R0.75 1°30′ 60 4.49 1.5 3 12° 6 110 18,000
08-00580-07561 R0.75 45 4.43 1.5 3 12° 6 90 16,000
08-00580-07562 R0.75 60 5.48 1.5 3 12° 6 110 18,000
08-00580-07581 R0.75 45.9 6 1.5 3 6 90 16,000
08-00580-07582 R0.75 60 7.47 1.5 3 12° 8 110 25,600
08-00580-07591 R0.75 45 8.85 1.5 3 12° 10 90 27,900
08-00580-07592 R0.75 60 11.47 1.5 3 12° 12 110 36,000
08-00580-10021 R1 30′ 50 2.8 2 4 12° 4 100 15,500
08-00580-10022 R1 30′ 80 3.33 2 4 12° 4 130 18,000
08-00580-10041 R1 50 3.61 2 4 12° 4 100 15,500
08-00580-10042 R1 80 4.65 2 4 12° 6 130 19,000
08-00580-10051 R1 1°30′ 50 4.41 2 4 12° 6 100 17,000
08-00580-10052 R1 1°30′ 80.3 6 2 4 6 130 19,000
08-00580-10061 R1 50 5.21 2 4 12° 6 100 17,000
08-00580-10062 R1 80 7.31 2 4 12° 8 130 27,900
08-00580-10081 R1 50 6.82 2 4 12° 8 100 23,300
08-00580-10082 R1 80.3 10 2 4 10 130 33,700
08-00580-10091 R1 49.7 10 2 4 10 100 29,100
08-00580-15021 R1.5 30′ 80 4.29 3 6 12° 6 130 20,000
08-00580-15041 R1.5 80 5.58 3 6 12° 6 130 20,000
08-00580-15051 R1.5 1°30′ 80 6.88 3 6 12° 8 130 36,000
08-00580-15061 R1.5 77.5 8 3 6 8 130 27,900
08-00580-15081 R1.5 72.7 10 3 6 10 130 33,700
08-00580-20021 R2 30′ 80 5.26 4 8 12° 6 130 22,000
08-00580-20041 R2 80 6.51 4 8 12° 8 130 27,900
08-00580-20051 R2 1°30′ 60 6.72 4 8 12° 8 110 25,600
08-00580-20052 R2 1°30′ 84.3 8 4 8 8 130 27,900
08-00580-20061 R2 60 7.63 4 8 12° 8 110 25,600
08-00580-20062 R2 80 9.03 4 8 12° 10 130 33,700
08-00580-20081 R2 60 9.45 4 8 12° 10 110 30,200
08-00580-20082 R2 84.3 12 4 8 12 130 44,000
08-00580-25021 R2.5 30′ 50 5.7 5 10 12° 6 100 18,000
08-00580-25022 R2.5 30′ 80 6.22 5 10 12° 8 130 27,900
08-00580-25041 R2.5 50 6.4 5 10 12° 8 100 26,800
08-00580-25042 R2.5 80 7.44 5 10 12° 8 130 29,100
08-00580-25051 R2.5 1°30′ 50 7.09 5 10 12° 8 100 25,600
08-00580-25052 R2.5 1°30′ 80 8.67 5 10 12° 10 130 33,700
08-00580-25061 R2.5 52.9 8 5 10 8 100 26,800
08-00580-25062 R2.5 81.5 10 5 10 10 130 33,700
08-00580-25081 R2.5 57.7 10 5 10 10 110 30,200
08-00580-30041 R3 69.2 8 6 12 8 130 30,200
08-00580-30051 R3 1°30′ 88.3 10 6 12 10 140 37,100
08-00580-30061 R3 69.3 10 6 12 10 130 34,800
08-00580-30081 R3 69.2 12 6 12 12 130 44,000
08-00580-40041 R4 73.2 10 8 16 10 130 33,700
08-00580-40051 R4 1°30′ 80 11.35 8 16 12° 12 130 42,900
08-00580-40061 R4 73.2 12 8 16 12 130 42,900
08-00580-50041 R5 77.2 12 10 20 12 130 42,900
08-00580-50051 R5 1°30′ 58.2 12 10 20 12 110 37,100
