MRBLN230-6

MUGEN COATING 2-Flute Long Neck Ball End Mill (Shank Dia. 6)

●Semi-standard item,please inquire for price and delivery.

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel

55HRC

65HRC

70HRC
Carbon Steel Alloy Steel
Prehardened
Steel
Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel

55HRC

65HRC

70HRC

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

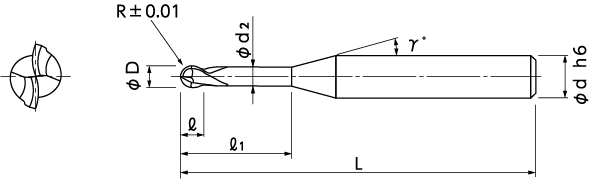

(R)Radius (l1)Under Neck Length (l)Length of Cut (D)Dia. (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
08-00522-01501 R0.15 3 0.3 0.3 0.28 15° 6 60 18,200
08-00522-02001 R0.2 4 0.4 0.4 0.37 15° 6 60 16,700
08-00522-02501 R0.25 5 0.8 0.5 0.46 15° 6 60 13,900
08-00522-03001 R0.3 3 1 0.6 0.56 15° 6 60 12,000
08-00522-03005 R0.3 5 1 0.6 0.56 15° 6 60 12,000
08-00522-03006 R0.3 6 1 0.6 0.56 15° 6 60 12,000
08-00522-04008 R0.4 8 1.4 0.8 0.76 15° 6 60 12,000
08-00522-05010 R0.5 10 1.5 1 0.95 15° 6 60 11,400
08-00522-07515 R0.75 15 1.75 1.5 1.45 15° 6 60 12,400
08-00522-10020 R1 20 2 2 1.94 15° 6 60 12,400
