MRB230SF

MUGEN COATING 2-Flute Long Neck Ball End Mill with Short Shank

●It fits for shrink chuck system．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Conner
    ±0.005

  • φd h5

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel
〜
55HRC		 ～
65HRC		 ～
70HRC
Carbon Steel Alloy Steel
Prehardened
Steel		 Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel		 ～
55HRC		 ～
65HRC
～
70HRC

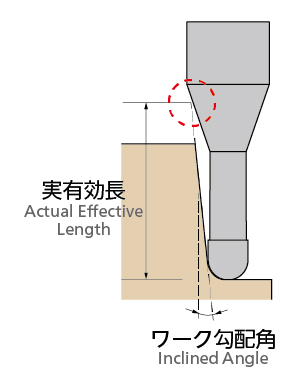

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.		 (R)Radius (l1)Under Neck Length (l)Length of Cut (D)Dia. (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (l2)Shank Length (L)Overall Length Retail
Price
08-00525-00103 R0.1 0.5 0.15 0.2 0.18 15° 4 27.3 35 8,400
08-00525-00105 R0.1 0.75 0.15 0.2 0.18 15° 4 27.1 35 8,400
08-00525-00107 R0.1 1 0.15 0.2 0.18 15° 4 26.8 35 8,400
08-00525-00109 R0.1 1.25 0.15 0.2 0.18 15° 4 26.6 35 9,100
08-00525-00151 R0.15 0.5 0.2 0.3 0.28 15° 4 27.5 35 8,200
08-00525-00152 R0.15 0.6 0.2 0.3 0.28 15° 4 27.4 35 8,200
08-00525-00153 R0.15 0.75 0.2 0.3 0.28 15° 4 27.3 35 8,200
08-00525-00154 R0.15 1 0.2 0.3 0.28 15° 4 27 35 8,200
08-00525-00155 R0.15 1.25 0.2 0.3 0.28 15° 4 26.8 35 8,200
08-00525-00156 R0.15 1.5 0.2 0.3 0.28 15° 4 26.5 35 8,800
08-00525-00157 R0.15 1.75 0.2 0.3 0.28 15° 4 26.3 35 8,800
08-00525-00202 R0.2 0.75 0.3 0.4 0.37 15° 4 27.4 35 5,600
08-00525-00203 R0.2 1 0.3 0.4 0.37 15° 4 27.2 35 5,600
08-00525-00204 R0.2 1.5 0.3 0.4 0.37 15° 4 26.7 35 5,700
08-00525-00205 R0.2 2 0.3 0.4 0.37 15° 4 26.2 35 5,900
08-00525-00206 R0.2 2.5 0.3 0.4 0.37 15° 4 25.7 35 6,100
08-00525-00251 R0.25 1 0.35 0.5 0.46 15° 4 27.3 35 5,600
08-00525-00252 R0.25 1.5 0.35 0.5 0.46 15° 4 26.8 35 5,600
08-00525-00253 R0.25 2 0.35 0.5 0.46 15° 4 26.3 35 5,600
08-00525-00254 R0.25 2.5 0.35 0.5 0.46 15° 4 25.8 35 5,600
08-00525-00255 R0.25 3 0.35 0.5 0.46 15° 4 25.3 35 5,600
08-00525-00301 R0.3 1.5 0.45 0.6 0.56 15° 4 27 35 4,300
08-00525-00302 R0.3 2 0.45 0.6 0.56 15° 4 26.5 35 4,300
08-00525-00303 R0.3 2.5 0.45 0.6 0.56 15° 4 26 35 4,400
08-00525-00304 R0.3 3 0.45 0.6 0.56 15° 4 25.5 35 4,400
08-00525-00305 R0.3 3.5 0.45 0.6 0.56 15° 4 25 35 4,600
08-00525-00306 R0.3 4 0.45 0.6 0.56 15° 4 29.5 40 4,600
08-00525-00307 R0.3 4.5 0.45 0.6 0.56 15° 4 29 40 4,600
08-00525-00308 R0.3 5 0.45 0.6 0.56 15° 4 28.5 40 4,600
08-00525-00309 R0.3 5.5 0.45 0.6 0.56 15° 4 28 40 4,600
08-00525-00310 R0.3 6 0.45 0.6 0.56 15° 4 27.5 40 4,600
08-00525-00401 R0.4 2 0.6 0.8 0.76 15° 4 26.9 35 4,300
08-00525-00402 R0.4 3 0.6 0.8 0.76 15° 4 25.9 35 4,600
08-00525-00403 R0.4 4 0.6 0.8 0.76 15° 4 29.9 40 4,600
08-00525-00404 R0.4 5 0.6 0.8 0.76 15° 4 28.9 40 4,600
08-00525-00501 R0.5 3 0.75 1 0.95 15° 4 26.3 35 3,600
08-00525-00502 R0.5 4 0.75 1 0.95 15° 4 25.3 35 4,100
08-00525-00503 R0.5 5 0.75 1 0.95 15° 4 29.3 40 4,100
08-00525-00504 R0.5 6 0.75 1 0.95 15° 4 28.3 40 4,400
08-00525-00505 R0.5 8 0.75 1 0.95 15° 4 26.3 40 4,400
08-00525-00506 R0.5 10 0.75 1 0.95 15° 4 24.3 40 4,400
08-00525-00751 R0.75 3 1.1 1.5 1.45 15° 4 27.2 35 4,200
08-00525-00752 R0.75 4 1.1 1.5 1.45 15° 4 26.2 35 4,200
08-00525-00754 R0.75 6 1.1 1.5 1.45 15° 4 29.2 40 4,200
08-00525-00755 R0.75 8 1.1 1.5 1.45 15° 4 27.2 40 4,200
08-00525-00756 R0.75 10 1.1 1.5 1.45 15° 4 25.2 40 4,200
08-00525-01001 R1 3 1.5 2 1.94 15° 4 28.1 35 3,600
08-00525-01002 R1 4 1.5 2 1.94 15° 4 27.1 35 3,600
08-00525-01003 R1 6 1.5 2 1.94 15° 4 25.1 35 4,100
08-00525-01004 R1 8 1.5 2 1.94 15° 4 28.1 40 4,400
08-00525-01005 R1 10 1.5 2 1.94 15° 4 26.1 40 4,400
08-00525-01006 R1 12 1.5 2 1.94 15° 4 29.1 45 4,400
08-00525-01007 R1 14 1.5 2 1.94 15° 4 27.1 45 4,400
08-00525-01008 R1 16 1.5 2 1.94 15° 4 25.1 45 4,400
08-00525-01009 R1 18 1.5 2 1.94 15° 4 28.1 50 4,400
08-00525-01010 R1 20 1.5 2 1.94 15° 4 26.1 50 4,400
08-00525-01501 R1.5 6 2.5 3 2.85 15° 4 31.8 40 4,100
08-00525-01502 R1.5 8 2.5 3 2.85 15° 4 29.8 40 4,100
08-00525-01503 R1.5 10 2.5 3 2.85 15° 4 27.8 40 4,400
08-00525-01504 R1.5 12 2.5 3 2.85 15° 4 25.8 40 4,400
