MHRLN230-6

MUGEN COATING 2-Flute Long Neck End Mill (Shank Dia. 6)

●Semi-standard item，please inquire for price and delivery．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 52HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

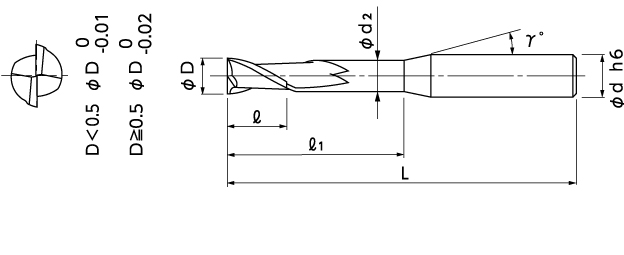

No.		 (D)Dia. (l1)Under Neck Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00202-03030 0.3 3 0.4 0.28 15° 6 60 ■
08-00202-04030 0.4 3 0.6 0.37 15° 6 60 ■
08-00202-04040 0.4 4 0.6 0.37 15° 6 60 ■
08-00202-04050 0.4 5 0.6 0.37 15° 6 60 ■
08-00202-05040 0.5 4 0.7 0.46 15° 6 60 ■
08-00202-05050 0.5 5 0.7 0.46 15° 6 60 ■
08-00202-05060 0.5 6 0.7 0.46 15° 6 60 ■
08-00202-06040 0.6 4 0.9 0.56 15° 6 60 ■
08-00202-06060 0.6 6 0.9 0.56 15° 6 60 ■
08-00202-08080 0.8 8 1.2 0.76 15° 6 60 ■
08-00202-10030 1 3 1.5 0.95 15° 6 60 ■
08-00202-10060 1 6 1.5 0.95 15° 6 60 ■
08-00202-10080 1 8 1.5 0.95 15° 6 60 ■
08-00202-10100 1 10 1.5 0.95 15° 6 60 ■
08-00202-15030 1.5 3 2.3 1.45 15° 6 60 ■
08-00202-15050 1.5 5 2.3 1.45 15° 6 60 ■
08-00202-15100 1.5 10 2.3 1.45 15° 6 60 ■
08-00202-15150 1.5 15 2.3 1.45 15° 6 60 ■
08-00202-20200 2 20 3 1.94 15° 6 60 ■
