MACH225SFDiscontinued

MUGEN COATING PREMIUM 2-Flute High Speed Ball End Mill with Short Shank for Hardened Steel

●It fits for Shrink Chuck System.
●It is designed for high speed cutting of hardened steels.

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 65HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    25°

  • Conner
    ±0.005(R<0.3)

  • φd h5

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
~
52HRC
~
60HRC
~
65HRC
~
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel
~
52HRC
Resin
~
60HRC
Graphite
~
65HRC
Hard Brittle
Material
~
70HRC
Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code
No.

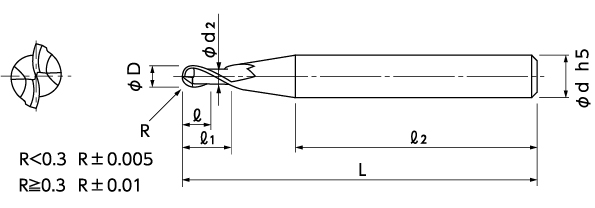

(R)Radius (l1)Under Neck Length (l)Length of Cut (D)Dia. (d2)Neck Dia. (d)Shank Dia. (l2)Shank Length (L)Overall Length Semi-standard
▲ 08-00554-01011 R0.1 0.5 0.2 0.2 0.175 4 28.2 35
▲ 08-00554-02011 R0.2 1 0.4 0.4 0.365 4 27.9 35
▲ 08-00554-03011 R0.3 1.5 0.6 0.6 0.56 4 27.6 35
▲ 08-00554-04011 R0.4 2 0.8 0.8 0.76 4 27.3 35
▲ 08-00554-05011 R0.5 2.5 1 1 0.95 4 32.1 40
▲ 08-00554-06011 R0.6 3 1.2 1.2 1.15 4 31.8 40
▲ 08-00554-07511 R0.75 3.8 1.5 1.5 1.45 4 31.3 40
▲ 08-00554-10011 R1 5 2 2 1.94 4 30.5 40
▲ 08-00554-15011 R1.5 8 3 3 2.85 4 28.7 40
▲ 08-00554-20012 R2 10 4 4 3.8 6 24.8 40
▲ 08-00554-25012 R2.5 12 5 5 4.8 6 30.1 45
▲ 08-00554-30012 R3 15 6 6 5.7 6 29 45
