AL3D-345

High efficient 3-Flute End Mill for Aluminium L/D=3

●AL-series realized a stable and high efficient machining.
●It exhibits stable excellent surface on a wide area and no chattering occurs even during high speed cutting.
●Realized high efficiency machining by adopting 3 flutes.

  • Material
    Regular Grain Carbide

  • Number of Flutes
    3 Flutes

  • Helix Angle
    45°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

  • Applications
    Pulunging Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
~
52HRC
~
60HRC
~
65HRC
~
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel
~
52HRC
Resin
~
60HRC
Graphite
~
65HRC
Hard Brittle
Material
~
70HRC
Hard Brittle
Material
Stainless Steel

Leaflet

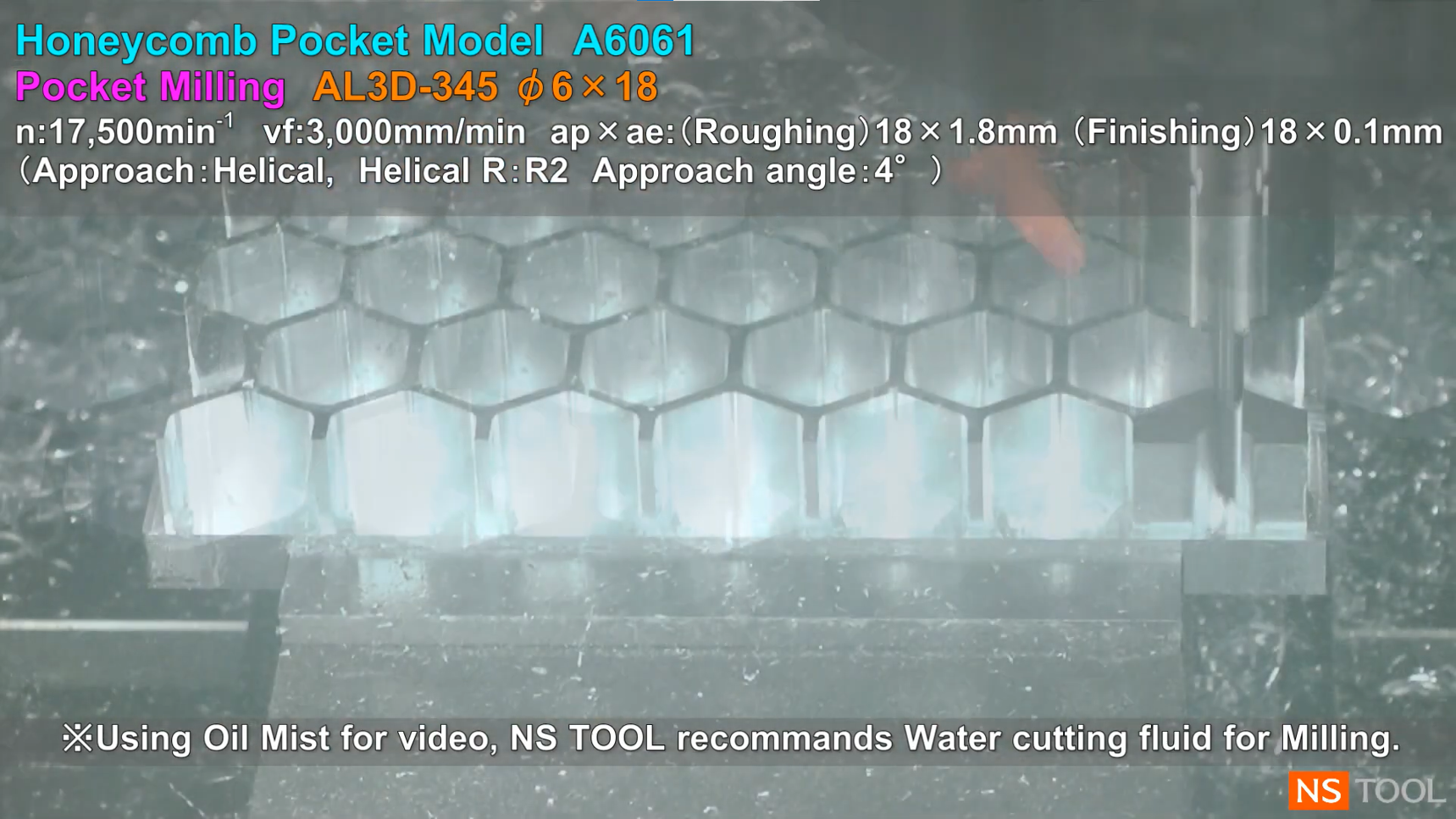

Machining Video

Line up

Unit [size: mm]

Code
No.
(D)Dia. (l)Length of Cut Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
01-00639-00100 1 3 12° 4 60
01-00639-00200 2 6 12° 4 60
01-00639-00300 3 9 12° 6 60
01-00639-00400 4 12 12° 6 70
01-00639-00500 5 15 12° 6 80
01-00639-00600 6 18 - 6 80
01-00639-00800 8 24 - 8 90
01-00639-01000 10 30 - 10 100
01-00639-01200 12 36 - 12 110
