RSB230

Ball End Mill for Resin

●Select the right one for your job，3D or 5D or 10D Length of cut，with Extra Long-neck or without neck．
●Applicable to nonferrous material such as Aluminum and copper．

  • Material
    Micro Grain Carbide

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Conner
    ±0.005(R<0.25)

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel
〜
55HRC		 ～
65HRC		 ～
70HRC
Carbon Steel Alloy Steel
Prehardened
Steel		 Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel		 ～
55HRC		 ～
65HRC
～
70HRC

Leaflet

Line up

Unit [size: mm / Retail Price: JPY]

Code

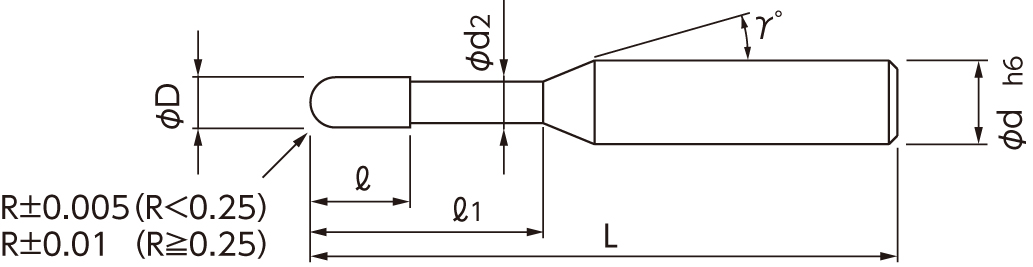

No.		 (R)Radius (l)Length of Cut (l1)Under Neck Length Type (D)Dia. (γ)Neck Taper Angle (d2)Neck Dia. (d2)Shank Dia. (L)Overall Length Retail
Price
01-00654-01000 R0.1 0.6 － A 0.2 9° － 4 50 7,400
01-00654-01001 R0.1 1 － A 0.2 9° － 4 50 8,400
01-00654-01002 R0.1 0.6 2 B 0.2 12° 0.18 4 50 14,400
01-00654-01500 R0.15 0.9 － A 0.3 9° － 4 50 6,500
01-00654-01501 R0.15 1.5 － A 0.3 9° － 4 50 7,200
01-00654-01503 R0.15 0.9 3 B 0.3 12° 0.28 4 50 13,800
01-00654-02000 R0.2 1.2 － A 0.4 9° － 4 50 7,100
01-00654-02001 R0.2 2 － A 0.4 9° － 4 50 8,400
01-00654-02004 R0.2 1.2 4 B 0.4 12° 0.37 4 50 8,200
01-00654-02005 R0.2 1.2 5 B 0.4 12° 0.37 4 50 9,000
01-00654-02500 R0.25 1.5 － A 0.5 9° － 4 50 4,800
01-00654-02501 R0.25 2.5 － A 0.5 9° － 4 50 5,800
01-00654-02502 R0.25 5 － A 0.5 9° － 4 50 7,200
01-00654-02510 R0.25 1.5 10 B 0.5 12° 0.46 4 50 9,600
01-00654-02515 R0.25 1.5 15 B 0.5 12° 0.46 4 50 10,800
01-00654-02520 R0.25 1.5 20 B 0.5 12° 0.46 4 60 12,600
01-00654-03000 R0.3 1.8 － A 0.6 9° － 4 50 5,600
01-00654-03001 R0.3 3 － A 0.6 9° － 4 50 6,800
01-00654-03006 R0.3 1.8 6 B 0.6 12° 0.56 4 50 6,000
01-00654-03010 R0.3 1.8 10 B 0.6 12° 0.56 4 50 9,400
01-00654-04000 R0.4 2.4 － A 0.8 9° － 4 50 5,600
01-00654-04001 R0.4 4 － A 0.8 9° － 4 50 6,800
01-00654-04008 R0.4 2.4 8 B 0.8 12° 0.76 4 50 5,900
01-00654-04012 R0.4 2.4 12 B 0.8 12° 0.76 4 50 7,100
01-00654-05000 R0.5 3 － A 1 9° － 4 50 3,900
01-00654-05001 R0.5 5 － A 1 9° － 4 50 4,800
01-00654-05002 R0.5 10 － A 1 9° － 4 50 9,200
01-00654-05010 R0.5 3 10 B 1 12° 0.95 4 50 5,100
01-00654-05015 R0.5 3 15 B 1 12° 0.95 4 60 5,100
01-00654-05020 R0.5 3 20 B 1 12° 0.95 4 60 6,000
01-00654-05030 R0.5 3 30 B 1 12° 0.95 4 70 9,000
01-00654-07500 R0.75 4.5 － A 1.5 9° － 4 50 4,200
01-00654-07501 R0.75 7.5 － A 1.5 9° － 4 50 5,100
01-00654-07502 R0.75 15 － A 1.5 9° － 4 60 9,400
01-00654-07515 R0.75 4.5 15 B 1.5 12° 1.45 4 60 5,200
01-00654-07530 R0.75 4.5 30 B 1.5 12° 1.45 4 70 8,400
01-00654-07545 R0.75 4.5 45 B 1.5 12° 1.45 4 90 12,000
01-00654-10000 R1 6 － A 2 9° － 4 50 4,200
01-00654-10001 R1 10 － A 2 9° － 4 50 5,100
01-00654-10002 R1 20 － A 2 9° － 4 60 9,400
01-00654-10020 R1 6 20 B 2 12° 1.94 4 60 5,100
01-00654-10030 R1 6 30 B 2 12° 1.94 4 80 6,200
01-00654-10050 R1 6 50 B 2 12° 1.94 4 110 11,800
01-00654-10070 R1 6 70 B 2 12° 1.94 4 110 14,400
01-00654-15000 R1.5 9 － A 3 － － 3 100 7,800
01-00654-15001 R1.5 9 － A 3 9° － 6 50 5,400
01-00654-15002 R1.5 15 － A 3 9° － 6 60 6,000
01-00654-15030 R1.5 9 30 B 3 12° 2.85 6 70 7,200
01-00654-15045 R1.5 9 45 B 3 12° 2.85 6 90 8,400
01-00654-15060 R1.5 9 60 B 3 12° 2.85 6 110 13,200
01-00654-20000 R2 12 － A 4 － － 4 120 9,400
01-00654-20001 R2 12 － A 4 9° － 6 50 5,400
01-00654-20002 R2 20 － A 4 9° － 6 60 7,000
01-00654-20030 R2 12 30 B 4 12° 3.8 6 70 7,200
01-00654-20040 R2 12 40 B 4 12° 3.8 6 90 7,600
01-00654-20070 R2 12 70 B 4 12° 3.8 6 120 16,200
01-00654-25000 R2.5 15 － A 5 9° － 6 70 6,300
01-00654-25001 R2.5 25 － A 5 9° － 6 80 8,400
01-00654-30000 R3 18 － A 6 － － 6 80 6,600
01-00654-30001 R3 30 － A 6 － － 6 90 8,400
01-00654-30040 R3 18 40 B 6 － 5.8 6 100 8,800
01-00654-30060 R3 18 60 B 6 － 5.8 6 120 11,600
01-00654-30080 R3 18 80 B 6 － 5.8 6 130 17,400
