MXH240

MUGEN COATING PREMIUM 2-Flute LEAD40 End Mill

●Applicable for heat resistance alloy such as stainless steels and titanium alloy by MUGEN-COATING PREMIUM.
●L/D=4 and helix 40°is suitable for deep machining with minimum deflection of cutting up-right surface.

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    40°

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material

55HRC

65HRC

70HRC

Carbon Stee Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel

55HRC
Resin

65HRC
Graphite

70HRC
Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code
No.

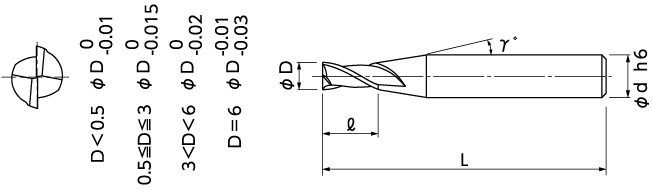

(D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00008-00030 0.3 1.2 12° 4 45
08-00008-00040 0.4 1.6 12° 4 45
08-00008-00050 0.5 2 12° 4 45
08-00008-00080 0.8 3.2 12° 4 45
08-00008-00100 1 4 12° 4 45
08-00008-00120 1.2 4.8 12° 4 45
08-00008-00150 1.5 6 12° 4 45
08-00008-00180 1.8 7.2 12° 4 45
08-00008-00200 2 8 12° 4 45
08-00008-00250 2.5 10 12° 4 45
08-00008-00300 3 12 12° 6 50
08-00008-00400 4 16 12° 6 55
08-00008-00500 5 20 12° 6 60
08-00008-00600 6 24 6 65
