CED100Discontinued

Monocrystalline Diamond End Mill “CLEAR EDGE”

●Direct machining to cemented carbide，hard metal．
●Enable high-accurate machining to brittle materials．
●Unique design to maximize performance of monocrystalline diamond．
●The sizes will no longer be capable being sold after the stock runs out．

  • Material
    Monocrystalline Diamond

  • Cutting Possibility of Work Material Hardness
    Up to 92.5HRA

  • Number of Flutes
    1 Flutes

  • Helix Angle
    0°

  • φd h5

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

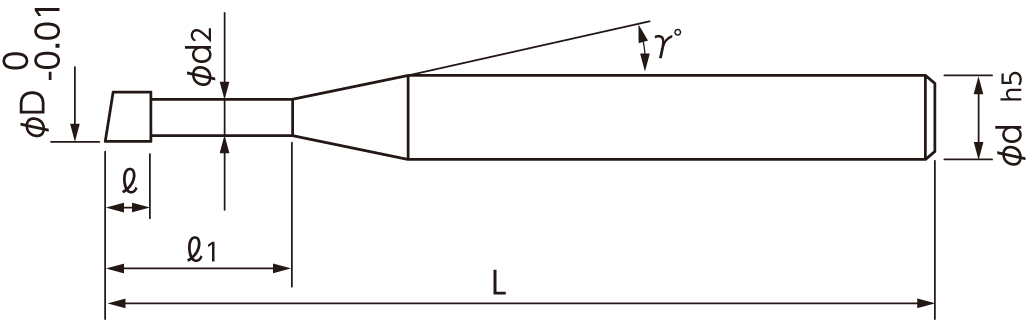

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (l1)Under Neck Length (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
▲ 04-00100-00100 0.1 0.05 0.2 0.09 15° 4 40
▲ 04-00100-00200 0.2 0.1 0.4 0.18 15° 4 40
▲ 04-00100-00300 0.3 0.15 0.6 0.27 15° 4 40
▲ 04-00100-00400 0.4 0.2 0.8 0.36 15° 4 40
▲ 04-00100-00500 0.5 0.25 1 0.46 15° 4 40
▲ 04-00100-01000 1 0.5 2 0.9 15° 4 40
▲ 04-00100-01200 1.2 0.6 2.4 1.08 15° 4 40
▲ 04-00100-01500 1.5 0.75 3 1.42 15° 4 40
▲ 04-00100-02000 2 1 4 1.9 15° 4 40

▲ means the sizes will no longer be on sale after the stock runs out.
