NSPD

Micro Point Drill (Drill for Guide Hole)

●Micro Point Drill for guide hole．
●Thinning on the cutting edge to reduce cutting forces for accurate drilling． (Dia． 0．025～)

  • Material
    Super Micro Grain Carbide

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • φd h3

  • Applications
    Drilling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code

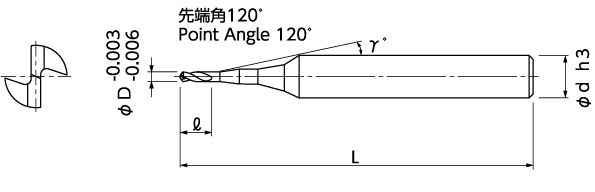

No.		 (D)Dia. (l)Flute Length (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
04-00010-00100 0.01 0.015 15° 4 40
04-00010-00150 0.015 0.025 15° 4 40
04-00010-00200 0.02 0.04 15° 4 40
04-00010-00250 0.025 0.05 15° 4 40
04-00010-00300 0.03 0.06 15° 4 40
04-00010-00400 0.04 0.08 15° 4 40
04-00010-00500 0.05 0.1 15° 4 40
04-00010-00600 0.06 0.12 15° 4 40
04-00010-00700 0.07 0.14 15° 4 40
04-00010-00800 0.08 0.16 15° 4 40
04-00010-00900 0.09 0.18 15° 4 40
04-00010-01000 0.1 0.2 15° 4 40
