NSMB100

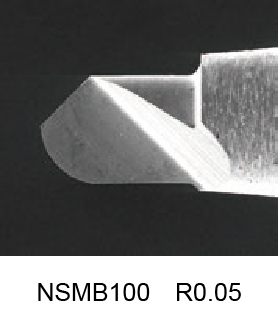

Ball End Mill for precision machining “Micro Ball”

●The world′s first standardization of Ball size R0．005． Micro Ball develops new machining field in high-precision technology．
●The world′s smallest ball end mill “Micro Ball” extends precision machining field．
●NS original R design exericises fine finishing surface．

  • Material
    Super Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    1 Flutes

  • Helix Angle
    0°

  • Conner
    ±0.002

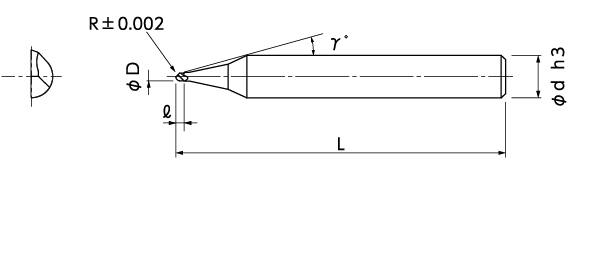

  • φd h3

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel
〜
55HRC		 ～
65HRC		 ～
70HRC
Carbon Steel Alloy Steel
Prehardened
Steel		 Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel		 ～
55HRC		 ～
65HRC
～
70HRC

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.		 (R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
01-00003-00005 R0.005 0.01 0.01 15° 4 45 34,700
01-00003-00010 R0.01 0.02 0.02 15° 4 45 27,800
01-00003-00015 R0.015 0.03 0.03 15° 4 45 23,800
01-00003-00020 R0.02 0.04 0.04 15° 4 45 20,000
01-00003-00025 R0.025 0.05 0.05 15° 4 45 18,000
01-00003-00030 R0.03 0.06 0.06 15° 4 45 12,900
01-00003-00040 R0.04 0.08 0.08 15° 4 45 10,800
01-00003-00050 R0.05 0.1 0.1 15° 4 45 9,000
