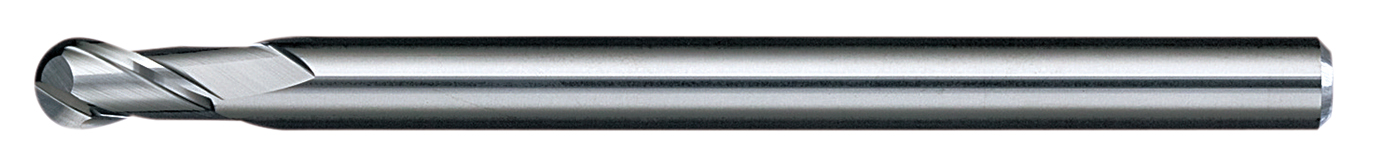

NSB-2

2-Flute Ball End Mill

●Semi-standard item,please inquire for price and delivery.

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel

55HRC

65HRC

70HRC
Carbon Steel Alloy Steel
Prehardened
Steel
Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel

55HRC

65HRC

70HRC

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.
(R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
01-00522-00100 R1 3 2 4 60 7,000
01-00522-00125 R1.25 3.5 2.5 4 60 7,500
01-00522-00150 R1.5 4 3 6 60 7,800
01-00522-00175 R1.75 5 3.5 6 60 8,000
01-00522-00200 R2 6 4 6 60 8,000
01-00522-00250 R2.5 8 5 6 60 9,000
01-00522-00300 R3 10 6 6 80 9,400
01-00522-00350 R3.5 13 7 8 90 18,300
01-00522-00400 R4 13 8 8 90 14,000
01-00522-00450 R4.5 15 9 10 100 24,300
01-00522-00500 R5 15 10 10 100 16,900
01-00522-00550 R5.5 15 11 12 110 30,400
01-00522-00600 R6 15 12 12 110 24,400
01-00522-00700 R7 20 14 16 160 63,900
01-00522-00800 R8 20 16 16 160 55,000
01-00522-00900 R9 25 18 20 170 95,900
01-00522-01000 R10 25 20 20 170 81,600

means the sizes will no longer be on sale after the stock runs out.
